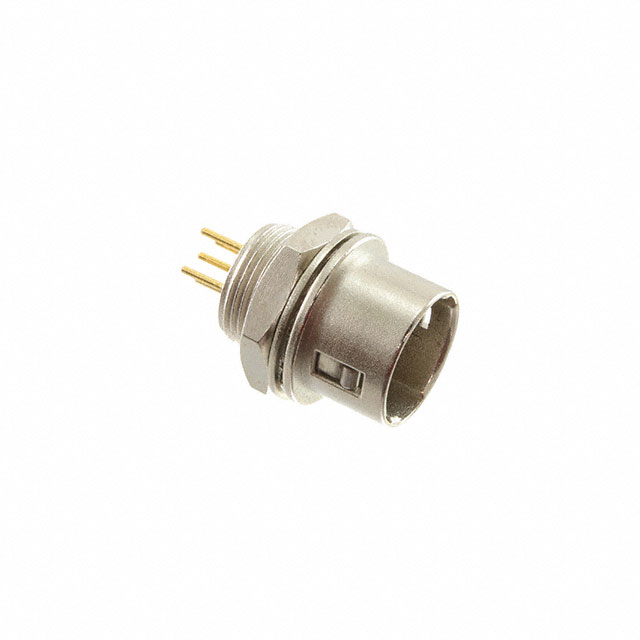

SD-PNN05-MMLRH-PX0-000

Active

Adam Tech

CONN RCPT MALE 5POS GOLD SOLDER

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT MALE 5POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SD-PNN05-MMLRH-PX0-000

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Fastening Type	Detent Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	DIN
Shielding	Unshielded
Termination	Solder

Part	Connector Type	Color	Primary Material	Contact Finish - Mating	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Contact Material	Shell Material	Backshell Material, Plating	Contact Finish Thickness - Mating	Shell Size - Insert	Shielding	Ingress Protection	Material Flammability Rating	Shell Finish	Orientation	Fastening Type	Features	Mounting Feature	Termination
Adam Tech SD-PNN05-MMLAL-SX0-000	Male Pins Plug	Black Silver	Metal	Gold	Free Hanging (In-Line)	0.291 in	7.39 mm	Polyamide (PA46) Nylon 4/6	Brass	Zinc Alloy	Brass Nickel	Flash	DIN	Unshielded	IP67 - Dust Tight Waterproof	UL94 V-0	Nickel	Keyed	Detent Lock	Backshell Cable Clamp Strain Relief
Adam Tech SD-PNN05-MMLRH-PX0-000	Male Pins Receptacle	Silver	Metal	Gold	Panel Mount Through Hole			Polyamide (PA46) Nylon 4/6	Brass	Zinc Alloy		Flash	DIN	Unshielded	IP67 - Dust Tight Waterproof	UL94 V-0	Nickel	Keyed	Detent Lock		Bulkhead - Rear Side Nut	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.66
