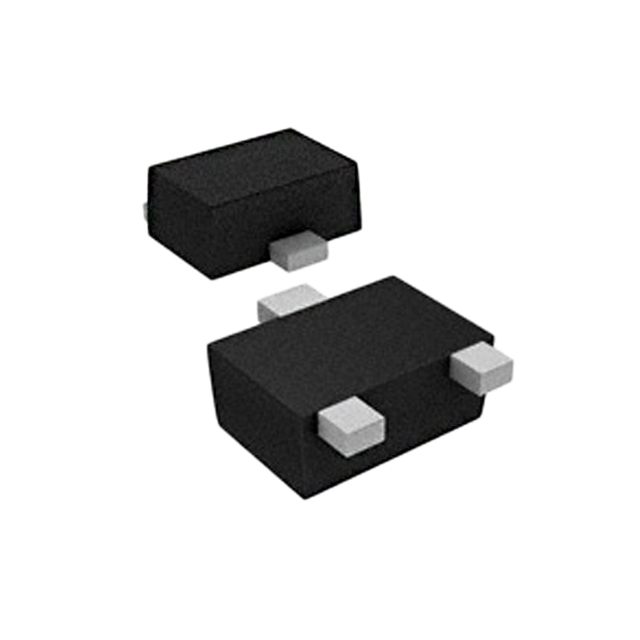

2SA1955FVBTPL3Z

Obsolete

Toshiba Semiconductor and Storage

TRANS PNP 12V 0.4A VESM

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

TRANS PNP 12V 0.4A VESM

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1955FVBTPL3Z

Current - Collector (Ic) (Max) [Max]	400 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	300 hFE
Frequency - Transition	130 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	SOT-723
Power - Max [Max]	100 mW
Supplier Device Package	VESM
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	12 V

Part	Vce Saturation (Max) @ Ib, Ic	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Frequency - Transition	Mounting Type	Power - Max [Max]	Operating Temperature	Package / Case	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]
Toshiba Semiconductor and Storage 2SA1955FVBTPL3Z	250 mV	VESM	300 hFE	400 mA	130 MHz	Surface Mount	100 mW	150 °C	SOT-723	PNP	12 V	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 12 V 400 mA 130MHz 100 mW Surface Mount VESM
