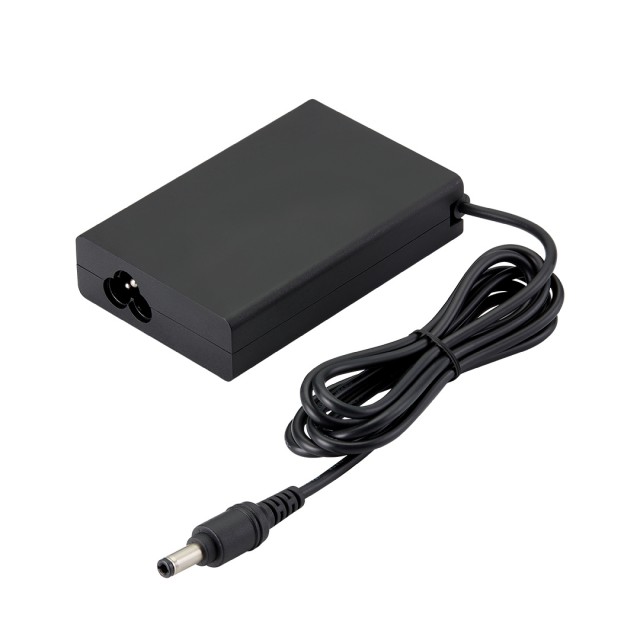

FSP120-ABBU3

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 19V 120W

Search across all available documentation for this part.

Active

FSP Technology Inc.

AC/DC DESKTOP ADAPTER 19V 120W

Technical Specifications

Parameters and characteristics for this part

Part	Input Connector	Output Connector	Output Connector	Input Type	No Load Power Consumption	Cord Length	Cord Length	Approval Agency	Form	Current - Output (Max) [Max]	Power (Watts)	Region Utilized	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Standard Number	Voltage - Output	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Ratings	Features	Voltage - Isolation	Mounting Type	Number of Outputs	Voltage - Input (Max) [Max]	Dimming	Type	Termination Style	Topology	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]
FSP Technology Inc. FSP120-AHAN3	IEC 320-C14	4 Pin	Power DIN	Cord	500 mW	1.5 m	59 in	CB CCC CE cULus FCC GS TUV VCCI	Desktop (Class I)	10 A	120 W	International	ITE (Commercial)	5.96 "	75.6 mm	1 "	2.98 "	25.4 mm	151.3 mm	CoC Tier 2 Level VI	60950-1 62368-1	12 V	Positive Center	90 VAC	264 VAC	70 °C	0 °C
FSP Technology Inc. FSP120-ABBU3	IEC 320-C6			Cord	500 mW	1.5 m	59 in		Desktop (Class I)	6.32 A	120 W	International	ITE (Commercial)	3.86 in		0.89 in	2.54 in		98 mm	CoC Tier 2 Level VI	60950-1 62368-1	19 V	Positive Center	90 VAC	264 VAC	70 °C	0 °C	22.5 mm	64.5 mm
FSP Technology Inc. FSP120-FZAE1(500)MG								CE cULus		5 A	120 W			7.68 "	68 mm	1.53 in	2.68 "	38.8 mm	195 mm											IP65 IP67	OTP OVP SCP	500 V	Chassis Mount	1	305 VAC	Analog PWM	Constant Current	Wire Leads	AC DC Converter	93 %	90 VAC	16 V	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 51.40

General part information

19V 120 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
