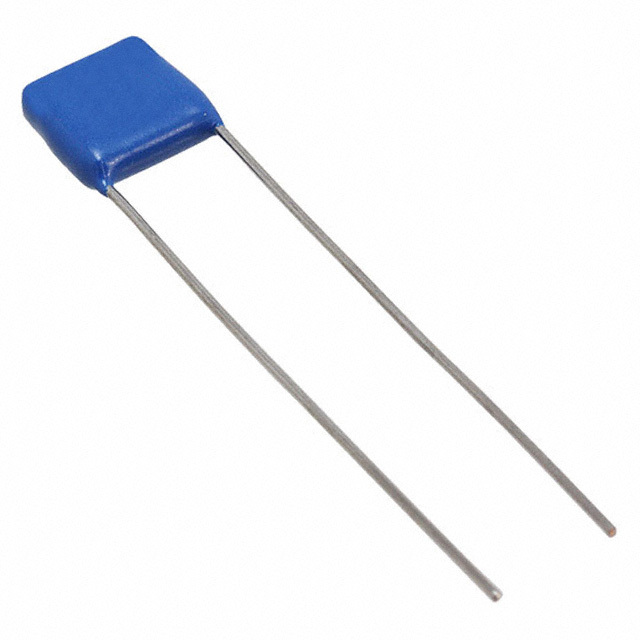

30HV12N102KC

Active

KEMET

CAP CER 1000PF 3KV NP0 RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP CER 1000PF 3KV NP0 RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	30HV12N102KC

Applications	Downhole
Capacitance	0.001 µF
Features	High Voltage, High Temperature
Height - Seated (Max) [Max] [z]	0.4 in
Height - Seated (Max) [Max] [z]	10.16 mm
Lead Spacing	0.3 "
Lead Spacing	7.62 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	10.67 mm
Size / Dimension [x]	0.42 in
Size / Dimension [y]	6.35 mm
Size / Dimension [y]	0.25 in
Temperature Coefficient	NP0, C0G
Tolerance	10 %

Part	Package / Case	Lead Spacing	Lead Spacing	Lead Style	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Capacitance	Applications	Tolerance
KEMET 30HV12N102KC	Radial	0.3 "	7.62 mm	Straight	0.4 in	10.16 mm	C0G NP0	6.35 mm	10.67 mm	0.25 in	0.42 in	High Temperature High Voltage	-55 °C	200 °C	Through Hole	0.001 µF	Downhole	10 %
KEMET 30HV12N101KN	Radial	0.3 "	7.62 mm	Straight	0.4 in	10.16 mm	C0G NP0	6.35 mm	10.67 mm	0.25 in	0.42 in	High Temperature High Voltage	-55 °C	200 °C	Through Hole	100 pF	Downhole	10 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 pF ±10% 3000V (3kV) Ceramic Capacitor C0G, NP0 Radial
