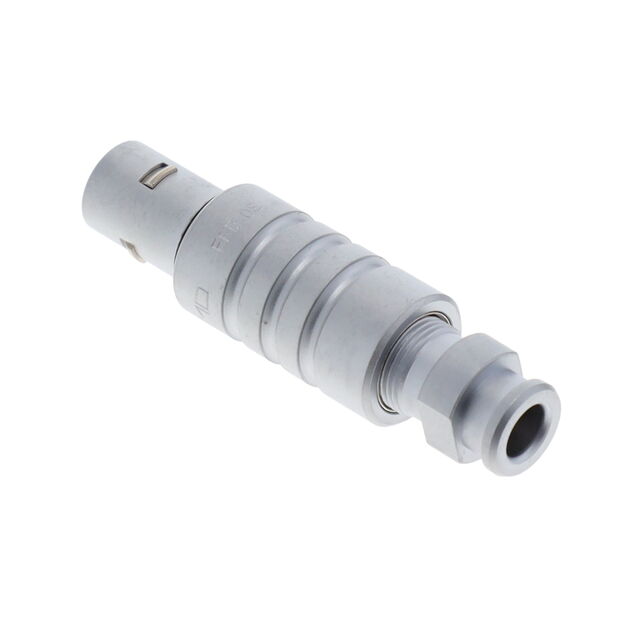

FFE.0S.250.CLAC32Z

Active

LEMO

CONN INLINE PLUG 1PIN SLD CUP

Search across all available documentation for this part.

Active

LEMO

CONN INLINE PLUG 1PIN SLD CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FFE.0S.250.CLAC32Z

Body Finish	Chrome
Body Material	Brass
Cable Group	178, RG-174
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Triaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp

Part	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Housing Color	Center Contact Plating	Body Material	Number of Ports	Mating Cycles	Center Contact Material	Connector Style	Connector Type	Fastening Type	Cable Group	Dielectric Material	Contact Termination	Shield Termination	Ingress Protection	Body Finish	Mounting Type	Orientation	Shell Material	Contact Material	Current Rating (Amps)	Backshell Material, Plating	Shielding	Insert Material	Shell Size - Insert	Color	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Primary Material	Shell Finish	Contact Finish - Mating	Material Flammability Rating	Number of Positions	Features
LEMO FFE.0S.250.CLAC32Z	-55 °C	250 °C	50 Ohms	Silver	Gold	Brass	1	1000	Brass	Triaxial	Male Pin Plug	Push-Pull	178 RG-174	Polytetrafluoroethylene (PTFE)	Solder	Clamp	IP50	Chrome	Free Hanging (In-Line)
LEMO FFE.0S.304.CLAC42Z	-55 °C	250 °C									Female Sockets Male Pins Plug	Push-Pull					IP54 - Dust Protected Water Resistant		Free Hanging (In-Line)	Keyed	Brass	Brass Bronze	7 A	Brass Chrome	Shielded	Polyetheretherketone (PEEK)	304	Silver	0.126 in	4.2 mm	0.165 in	3.2 mm	Metal	Chrome	Gold	UL94 V-0	4	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
