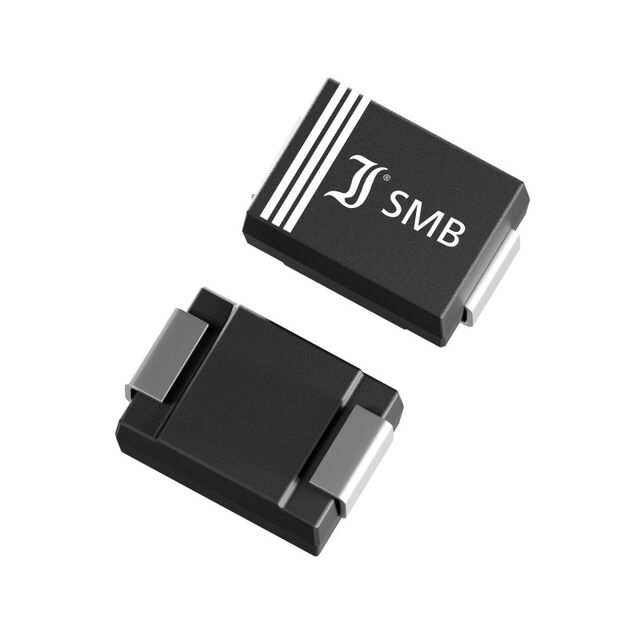

P6SMBJ36A-AQ

Active

Diotec Semiconductor

DIODE: TVS; 600W; 40÷44.4V; 10.3A; UNIDIRECTIONAL; ±5%; SMB; P6SMBJ

Search across all available documentation for this part.

Active

Diotec Semiconductor

DIODE: TVS; 600W; 40÷44.4V; 10.3A; UNIDIRECTIONAL; ±5%; SMB; P6SMBJ

Technical Specifications

Parameters and characteristics for this part

Specification	P6SMBJ36A-AQ

Current - Peak Pulse (10/1000µs)	10.3 A
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	600 W
Power Line Protection	False
Qualification	AEC-Q101
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	40 V
Voltage - Clamping (Max) @ Ipp [Max]	58.1 V
Voltage - Reverse Standoff (Typ)	36 V

Part	Unidirectional Channels [custom]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Supplier Device Package	Mounting Type	Current - Peak Pulse (10/1000µs)	Operating Temperature [Max]	Operating Temperature [Min]	Power - Peak Pulse	Qualification	Voltage - Clamping (Max) @ Ipp [Max]	Type	Package / Case	Power Line Protection	Voltage - Reverse Standoff (Typ)	Grade
Diotec Semiconductor P6SMBJ36A-AQ	1	40 V	SMB	DO-214AA	Surface Mount	10.3 A	150 °C	-50 °C	600 W	AEC-Q101	58.1 V	Zener	DO-214AA SMB		36 V	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

58.1V Clamp 10.3A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
