TW-10-01-T-S-120-100

Active

Samtec Inc.

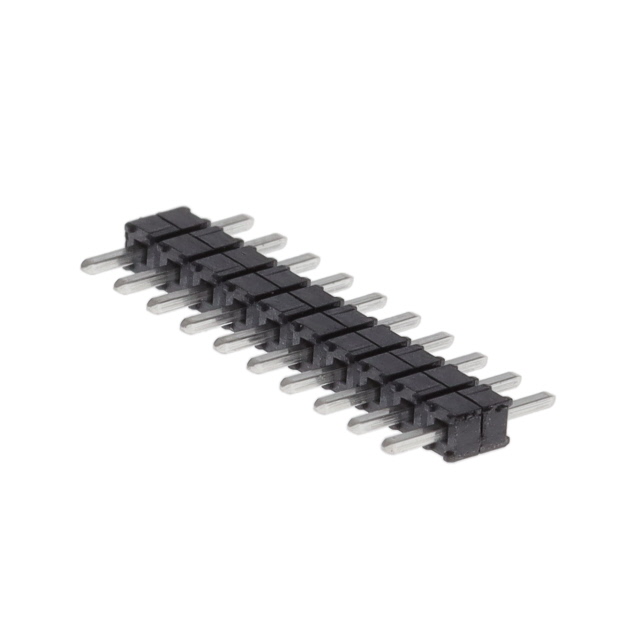

CONN BOARD STACKER HDR 10 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet TW Datasheet +1

TW-10-01-T-S-120-100

Active

Samtec Inc.

CONN BOARD STACKER HDR 10 POS 2MM SOLDER ST TOP ENTRY THRU-HOLE BULK

Deep-Dive with AI

DocumentsDatasheet TW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TW-10-01-T-S-120-100

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin [x]	0.323 in
Length - Overall Pin [x]	8.204 mm
Length - Post (Mating) [x]	2.616 mm
Length - Post (Mating) [x]	0.103 in
Length - Stack Height [x]	0.12 in
Length - Stack Height [x]	3.048 mm
Length - Tail [x]	0.1 "
Length - Tail [x]	2.54 mm
Mounting Type	Through Hole
Number of Positions	10
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

TW-10-01 Series

Part	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Row Spacing	Row Spacing	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Tail	Length - Tail	Number of Positions	Mounting Type	Color	Number of Rows	Termination	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Length - Tail [x]	Length - Tail [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. TW-10-01-G-D-120-095	0.079 in	2 mm	Gold	2 mm	0.079 in	0.323 in	8.204 mm	2.413 mm	0.095 in	20	Through Hole	Black	2	Solder	0.51 Ám	20 Áin	0.12 in	3.048 mm
Samtec Inc. TW-10-01-T-S-120-100	0.079 in	2 mm	Tin			0.323 in	8.204 mm			10	Through Hole	Black	1	Solder			0.12 in	3.048 mm	0.1 "	2.54 mm	2.616 mm	0.103 in
Samtec Inc. TW-10-01-T-D-200-062	0.079 in	2 mm	Tin	2 mm	0.079 in	0.323 in	8.204 mm			20	Through Hole	Black	2	Solder					0.062 in	1.575 mm	1.55 mm	0.061 in
Samtec Inc. TW-10-01-G-D-135-086	0.079 in	2 mm	Gold	2 mm	0.079 in	0.323 in	8.204 mm			20	Through Hole	Black	2	Solder	0.51 Ám	20 Áin			0.086 in	2.184 mm	2.591 mm	0.102 in
Samtec Inc. TW-10-01-L-S-128-073	0.079 in	2 mm	Gold			0.323 in	8.204 mm	1.854 mm	0.073 in	10	Through Hole	Black	1	Solder	0.25 Ám	10 Áin					3.099 mm	0.122 in
Samtec Inc. TW-10-01-G-D-120-130	0.079 in	2 mm	Gold	2 mm	0.079 in	0.323 in	8.204 mm			20	Through Hole	Black	2	Solder	0.51 Ám	20 Áin	0.12 in	3.048 mm	0.13 in	3.302 mm	1.854 mm	0.073 in
Samtec Inc. TW-10-01-L-S-150-080	0.079 in	2 mm	Gold			0.323 in	8.204 mm			10	Through Hole	Black	1	Solder	0.25 Ám	10 Áin			0.08 in	2.032 mm	2.362 mm	0.093 in	0.15 in	3.81 mm
Samtec Inc. TW-10-01-T-D-120-065	0.079 in	2 mm	Tin	2 mm	0.079 in	0.323 in	8.204 mm	1.651 mm	0.065 in	20	Through Hole	Black	2	Solder			0.12 in	3.048 mm			3.505 mm	0.138 in
Samtec Inc. TW-10-01-L-S-120-060	0.079 in	2 mm	Gold			0.323 in	8.204 mm	1.524 mm		10	Through Hole	Black	1	Solder	0.25 Ám	10 Áin	0.12 in	3.048 mm	0.06 in		3.632 mm	0.143 in
Samtec Inc. TW-10-01-G-D-120-080	0.079 in	2 mm	Gold	2 mm	0.079 in	0.323 in	8.204 mm			20	Through Hole	Black	2	Solder	0.51 Ám	20 Áin	0.12 in	3.048 mm	0.08 in	2.032 mm	3.124 mm	0.123 in
