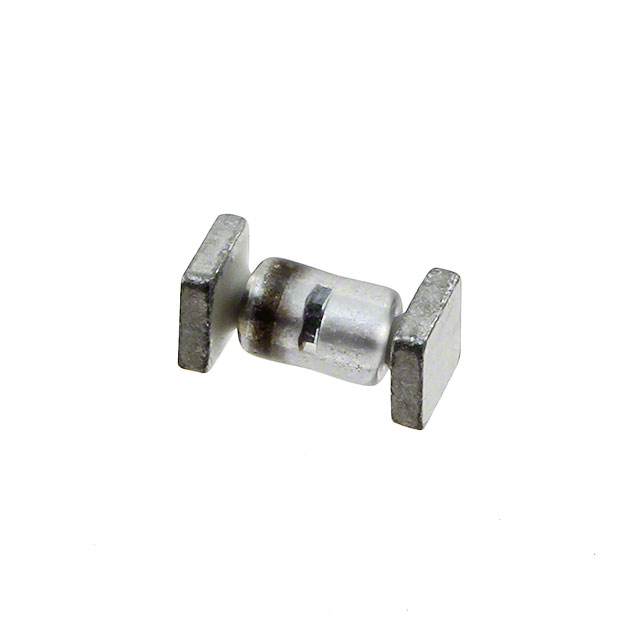

1N6461US

Unknown

Semtech Corporation

TVS DIODE 5VWM 9VC B AXIAL

Search across all available documentation for this part.

Unknown

Semtech Corporation

TVS DIODE 5VWM 9VC B AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	1N6461US

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	56 A
Mounting Type	Surface Mount
Package / Case	SQ-MELF, B
Power - Peak Pulse	500 W
Power Line Protection	False
Supplier Device Package	B, Axial
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	5.6 V
Voltage - Clamping (Max) @ Ipp [Max]	9 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Package / Case	Applications	Type	Mounting Type	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Grade
Semtech Corporation JAN1N6461
Semtech Corporation JAN1N6461US
Semtech Corporation 1N6461US	5 V	1	56 A	5.6 V	500 W	B SQ-MELF	General Purpose	Zener	Surface Mount	B Axial	9 V
Semtech Corporation JANTXV1N6461	5 V	1	56 A	5.6 V	500 W	Axial	General Purpose	Zener	Through Hole	Axial	9 V	MIL-PRF-19500/551	175 ░C	-65 °C	Military
Semtech Corporation JANTXV1N6461US	5 V	1	56 A	5.6 V	500 W	SQ-MELF	General Purpose	Zener	Surface Mount		9 V	MIL-PRF-19500/516			Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 13.01
Newark	Each	100	$ 13.03
		500	$ 12.53

General part information

9V Clamp 56A Ipp Tvs Diode Surface Mount B, Axial

Technical documentation and resources

No documents available
