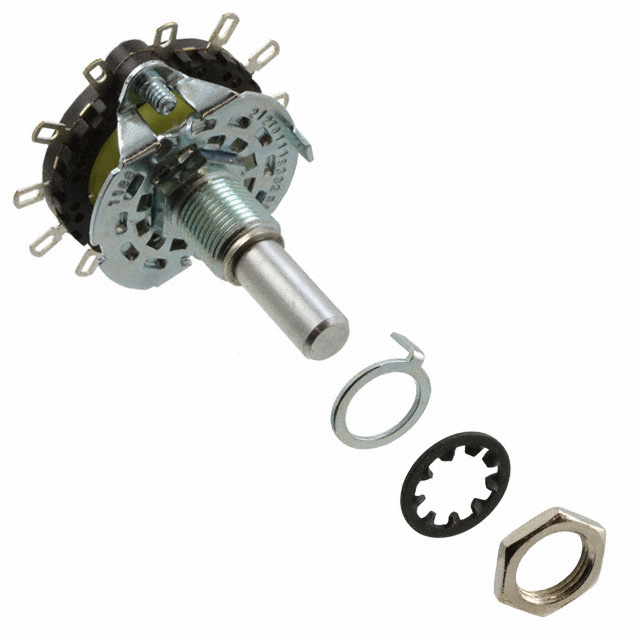

212T0111S332RA
ActiveTusonix a Subsidiary of CTS Electronic Components
SWITCH ROTARY 11POS 750MA 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 212T0111S332RA |
|---|---|
| Actuator Length [x] | 15.9 mm |
| Actuator Type | Round |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck [custom] | SP11T |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Shorting |
| Current Rating (Amps) | 250 mA, 750 mA |
| Depth Behind Panel [z] | 22.17 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 11 |
| Panel Cutout Dimensions [diameter] | 9.58 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.00 | |
| 5 | $ 10.32 | |||
| 10 | $ 9.67 | |||
| 25 | $ 8.87 | |||
| 50 | $ 8.30 | |||
| 100 | $ 7.77 | |||
| 250 | $ 7.12 | |||
| 500 | $ 6.66 | |||
| 1000 | $ 6.23 | |||
Description
General part information
212T0111 Series
Rotary Switch 11 Position SP11T 750mA (AC), 250mA (DC) 125 VAC Panel Mount
