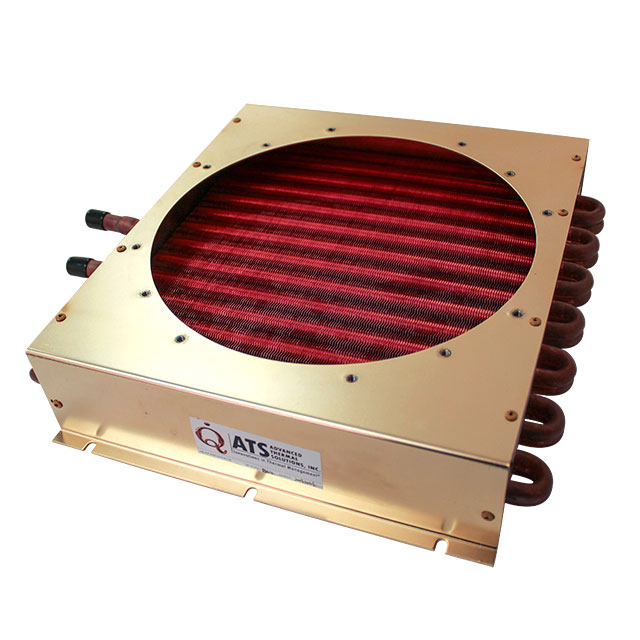

ATS-HE24-C1-R0

Active

Advanced Thermal Solutions Inc.

HEAT EXCHANGERS HEAT EXCHANGER WITH NO FAN, TUBE TO FIN, LIQUID-TO-AIR, 292X304X53MM (LXWXH)

Search across all available documentation for this part.

Active

Advanced Thermal Solutions Inc.

HEAT EXCHANGERS HEAT EXCHANGER WITH NO FAN, TUBE TO FIN, LIQUID-TO-AIR, 292X304X53MM (LXWXH)

Technical Specifications

Parameters and characteristics for this part

Heat Exchangers Heat Exchanger with 24VDC Fan, Tube to Fin, Liquid-to-Air, 292x304x53mm (LxWxH)

Part	Attachment Method	Product Type	Power - Cooling	Voltage	Dimensions - Overall [y]	Dimensions - Overall [y]	Dimensions - Overall [x]	Dimensions - Overall [z]	Dimensions - Overall [x]	Dimensions - Overall [z]	Weight	Weight
Advanced Thermal Solutions Inc. ATS-HE24-C2-R0	Bolt On	Active Heat Exchanger	97 W	12 V	307 mm	12.09 in	337.3 mm	2.64 "	13.28 "	67 mm	12.8 lbs	5.8 kg
Advanced Thermal Solutions Inc. ATS-HE24-C4-R0	Bolt On	Active Heat Exchanger	97 W	24 V	307 mm	12.09 in	337.3 mm	2.64 "	13.28 "	67 mm	12.8 lbs	5.8 kg
Advanced Thermal Solutions Inc. ATS-HE24-C7-R0	Bolt On	Active Heat Exchanger	97 W	48 V	307 mm	12.09 in	337.3 mm	2.64 "	13.28 "	67 mm	12.8 lbs	5.8 kg
Advanced Thermal Solutions Inc. ATS-HE24-C5-R0	Bolt On	Active Heat Exchanger	97 W	24 V	307 mm	12.09 in	337.3 mm	2.64 "	13.28 "	67 mm	12.8 lbs	5.8 kg
Advanced Thermal Solutions Inc. ATS-HE24-C1-R0		Active Heat Exchanger	97 W								8.9 lbs	4 kg
Advanced Thermal Solutions Inc. ATS-HE24-C6-R0	Bolt On	Active Heat Exchanger	97 W	48 V	307 mm	12.09 in	337.3 mm	2.64 "	13.28 "	67 mm	12.8 lbs	5.8 kg

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 595.78
Sager	N/A	1	$ 829.24
		5	$ 779.74

General part information

Heat Exchangers Heat Exchanger with 24VDC Fan, Tube to Fin, Liquid-to-Air, 292x304x53mm (LxWxH)
