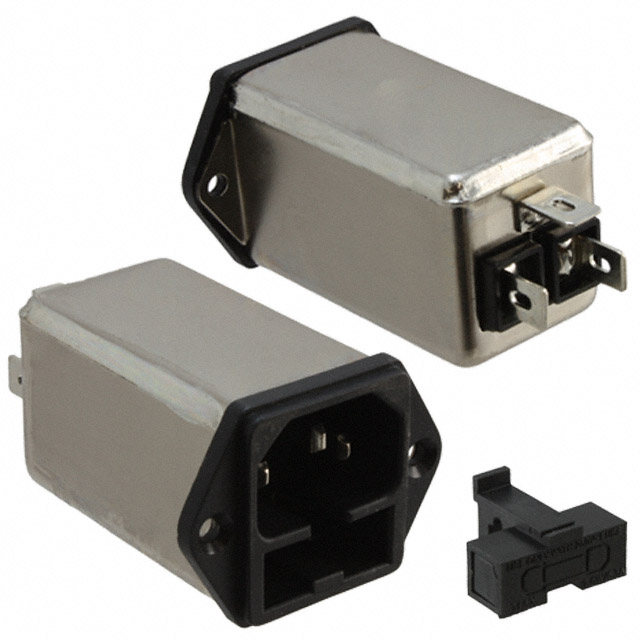

02BEEG3H
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
02BEEG3H
ActiveDelta Electronics
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 02BEEG3H |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 2 A |
| Current Rating - Filter | 2 A |
| Filter Type | Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 29 mm |
| Panel Cutout Dimensions [y] | 33 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet [Max] | 250 VAC |
| Voltage Rating - Appliance Inlet [Min] | 115 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.67 | |
| 10 | $ 12.11 | |||
| 25 | $ 11.65 | |||
| 50 | $ 11.18 | |||
| 189 | $ 10.56 | |||
| 378 | $ 9.63 | |||
| 567 | $ 9.01 | |||
| 1134 | $ 8.26 | |||
Description
General part information
02BEEG Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
