28630406RP2

Active

MH Connectors

28630406RP2 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

28630406RP2 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	28630406RP2

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.17 in
Insulation Height	4.32 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Termination	Solder

Part	Contact Finish - Mating	Number of Rows	Contact Finish - Post	Material Flammability Rating	Contact Shape	Connector Type	Contact Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Mounting Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Type	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
MH Connectors 28630406RP2	Gold	1	Tin	UL94 V-0	Square	Receptacle	Phosphor Bronze	All	Flash	2.54 µm	100 µin	Black	Surface Mount	Solder	0.079 in	2 mm	4	Female Socket	0.17 in	4.32 mm	Push-Pull	Nylon 6T Polyamide (PA6T)	-40 °C	105 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

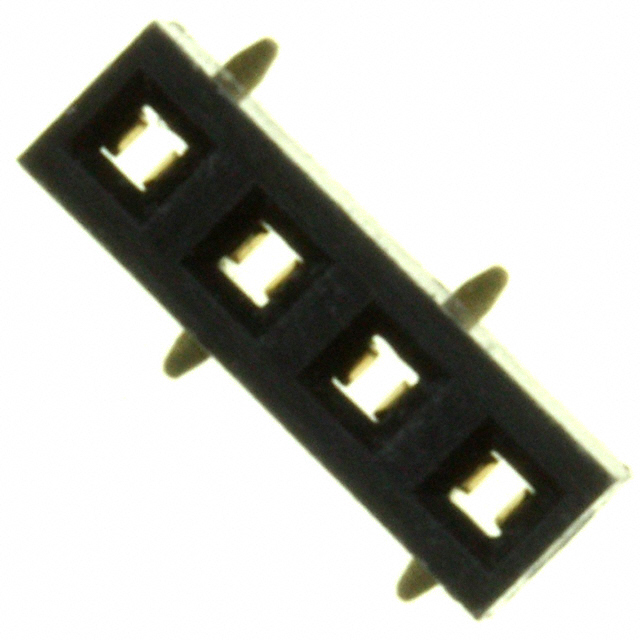

4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold
