7009-1511-004

Active

Radiall USA, Inc.

SSMC M STR SMT

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC M STR SMT

Technical Specifications

Parameters and characteristics for this part

Specification	7009-1511-004

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Center Contact Material	Body Finish	Impedance	Body Material	Connector Type	Contact Termination	Mounting Type	Center Contact Plating	Number of Ports	Connector Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Frequency - Max [Max]	Housing Color	Voltage Rating	Shield Termination
Radiall USA, Inc. 7009-1511-000	Beryllium Copper	Gold	50 Ohms	Brass	Jack Male Pin	Solder	Through Hole	Gold	1	SSMC	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500	12.4 GHz	Gold	250 VDC	Solder
Radiall USA, Inc. 7009-1511-004	Beryllium Copper	Gold	50 Ohms	Brass	Jack Male Pin	Solder	Surface Mount	Gold	1	SSMC	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500	12.4 GHz	Gold	250 VDC	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

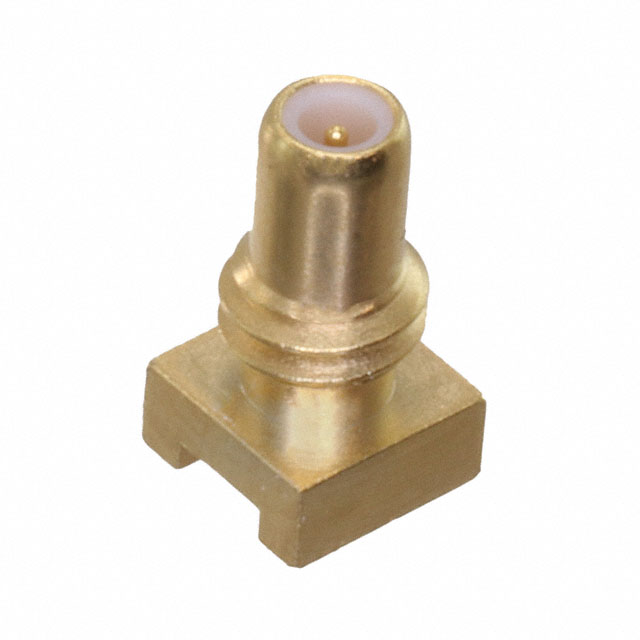

SSMC Connector Jack, Male Pin 50 Ohms Surface Mount Solder
