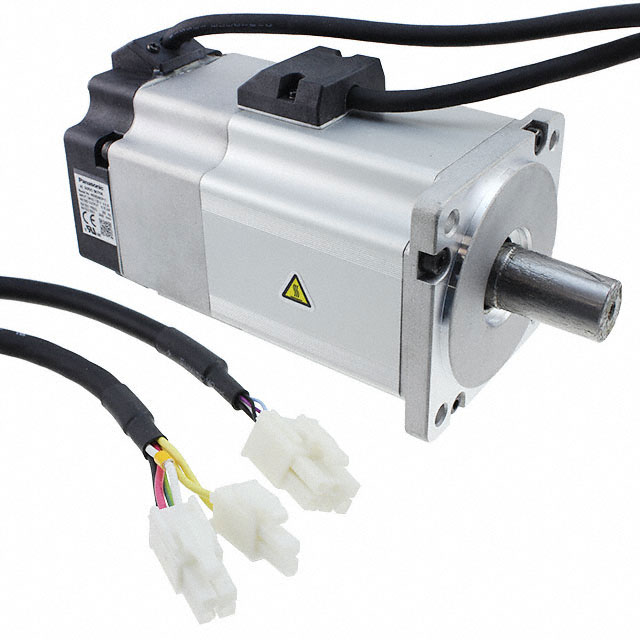

MSMD082G1B

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Search across all available documentation for this part.

MSMD082G1B

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSMD082G1B

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft	0.748 in
Diameter - Shaft	19 mm
Encoder Type	Incremental
Features	Brake
Function	Servomotor
Length - Shaft and Bearing	35 mm
Length - Shaft and Bearing	1.378 in
Mounting Hole Spacing	90 mm
Mounting Hole Spacing	3.543 in
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Termination Style	Wire Leads
Torque - Max Momentary (oz-in / mNm)	1005 oz-in
Torque - Max Momentary (oz-in / mNm)	7100 mNm
Torque - Rated (oz-in / mNm)	2400 mNm
Torque - Rated (oz-in / mNm)	339.9 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	3.1 kg
Weight	6.8 lbs

MSMD082 Series

Part	Encoder Type	Voltage - Rated	Length - Shaft and Bearing	Length - Shaft and Bearing	Function	Mounting Hole Spacing	Mounting Hole Spacing	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Diameter - Shaft	Diameter - Shaft	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	RPM	Termination Style	Operating Temperature [Max]	Weight	Weight	Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Features
Panasonic Industrial Automation Sales MSMD082G1A	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	2.3 kg	5 lbs	AC Motor	1005 oz-in	7100 mNm
Panasonic Industrial Automation Sales MSMD082P1T	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	3.1 kg	6.8 lbs	AC Motor	1005 oz-in	7100 mNm	Brake Key
Panasonic Industrial Automation Sales MSMD082P1S	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	2.3 kg	5 lbs	AC Motor	1005 oz-in	7100 mNm	Key
Panasonic Industrial Automation Sales MSMD082J1V	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	3.1 kg	6.8 lbs	AC Motor	1005 oz-in	7100 mNm	Brake Key Oil Seal
Panasonic Industrial Automation Sales MSMD082G2V	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C			AC Motor	1005 oz-in	7100 mNm	Brake Key Oil Seal
Panasonic Industrial Automation Sales MSMD082S1T	Absolute	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	3.1 kg	6.8 lbs	AC Motor	1005 oz-in	7100 mNm	Brake Key
Panasonic Industrial Automation Sales MSMD082G1B	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	3.1 kg	6.8 lbs	AC Motor	1005 oz-in	7100 mNm	Brake
Panasonic Industrial Automation Sales MSMD082G1T	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	3.1 kg	6.8 lbs	AC Motor	1005 oz-in	7100 mNm	Brake Key
Panasonic Industrial Automation Sales MSMD082S1A	Absolute	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	2.3 kg	5 lbs	AC Motor	1005 oz-in	7100 mNm
Panasonic Industrial Automation Sales MSMD082G1S	Incremental	200 VAC	35 mm	1.378 in	Servomotor	90 mm	3.543 in	CE CSA cULus TUV UL	3.15 in	80 mm	3.15 in	80 mm	0.748 in	19 mm	2400 mNm	339.9 oz-in	3000 RPM	Wire Leads	40 °C	2.3 kg	5 lbs	AC Motor	1005 oz-in	7100 mNm	Key

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSMD082 Series

AC Motor Servomotor 3000 RPM 750W Incremental 200VAC

Documents

Technical documentation and resources

No documents available
