05582.R8.02
ActivePrysmian Group

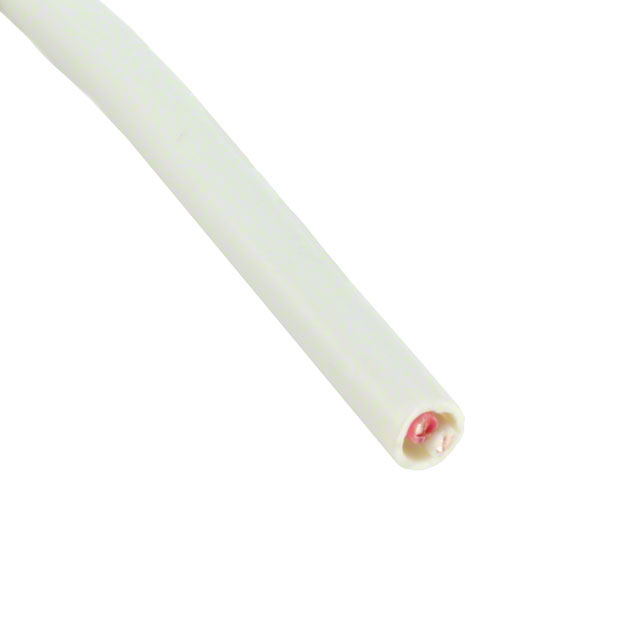

CABLE 2COND 18AWG WHITE
Deep-Dive with AI
Search across all available documentation for this part.
05582.R8.02
ActivePrysmian Group
CABLE 2COND 18AWG WHITE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 05582.R8.02 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Jacket (Insulation) Diameter [diameter] | 0.128 in |
| Jacket (Insulation) Diameter [diameter] | 3.25 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.203 mm |
| Jacket (Insulation) Thickness | 0.008 in |
| Length | 15.24 m |
| Length [x] | 50 ft, 500 ' |
| Length [x] | 152.4 m |
| Number of Conductors | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Usage | Thermostat |
| Voltage | 150 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 2 | $ 24.74 | |
| 6 | $ 20.24 | |||
| 10 | $ 15.74 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.24 | |||
| 1500 | $ 0.24 | |||
| 2500 | $ 0.23 | |||
| 3500 | $ 0.22 | |||
| 5000 | $ 0.22 | |||
| 12500 | $ 0.20 | |||
| 25000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
05582 Series
2 Conductor Multi-Conductor Cable White 18 AWG 500.0' (152.4m)
Documents
Technical documentation and resources
No documents available
