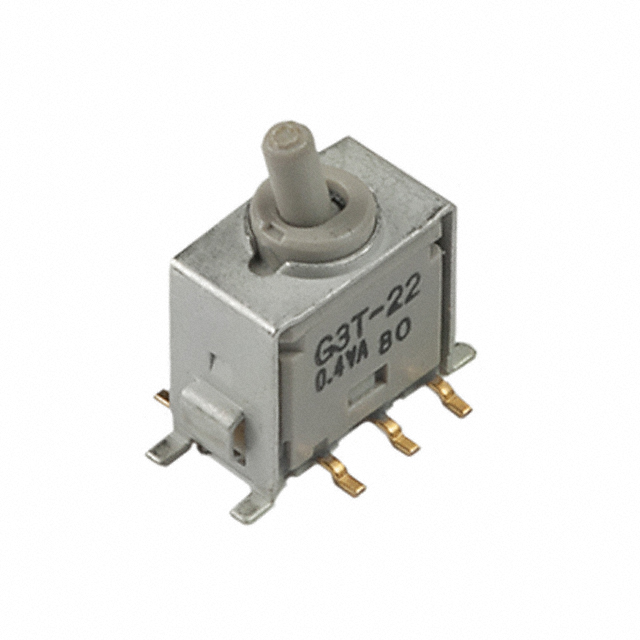

G3T22AB-S

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

PROCESS SEALED ULTRA-MINIATURE SMT TOGGLE

Technical Specifications

Parameters and characteristics for this part

Part	Bushing Thread	Illumination	Actuator Type	Actuator Length [x]	Actuator Material	Electrical Life	Voltage Rating - AC	Switch Function	Mounting Type	Termination Style	Voltage Rating - DC	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Features
NKK Switches G3T22AH-R	Unthreaded	Non-Illuminated	Standard Round	3.81 mm	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	On-On	Surface Mount Right Angle	Gull Wing	28 V	0.4 VA	-30 ░C	85 °C	DPDT
NKK Switches G3T22AB	Unthreaded	Non-Illuminated	Standard Round	3.81 mm	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	On-On	Surface Mount	Gull Wing	28 V	0.4 VA	-30 ░C	85 °C	DPDT	Process Sealed
NKK Switches G3T22AB-S	Unthreaded	Non-Illuminated	Standard Round	3.81 mm	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	On-On	Surface Mount	Gull Wing	28 V	0.4 VA	-30 ░C	85 °C	DPDT	Process Sealed
NKK Switches G3T22AP	Unthreaded	Non-Illuminated	Standard Round	3.81 mm	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	On-On	Surface Mount	Gull Wing	28 V	0.4 VA	-30 ░C	85 °C	DPDT	Process Sealed
NKK Switches G3T22AP-S	Unthreaded	Non-Illuminated	Standard Round	3.81 mm	Polyphenylene Sulfide (PPS)	50000 Cycles	28 V	On-On	Surface Mount	Gull Wing	28 V	0.4 VA	-30 ░C	85 °C	DPDT	Process Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Surface Mount
