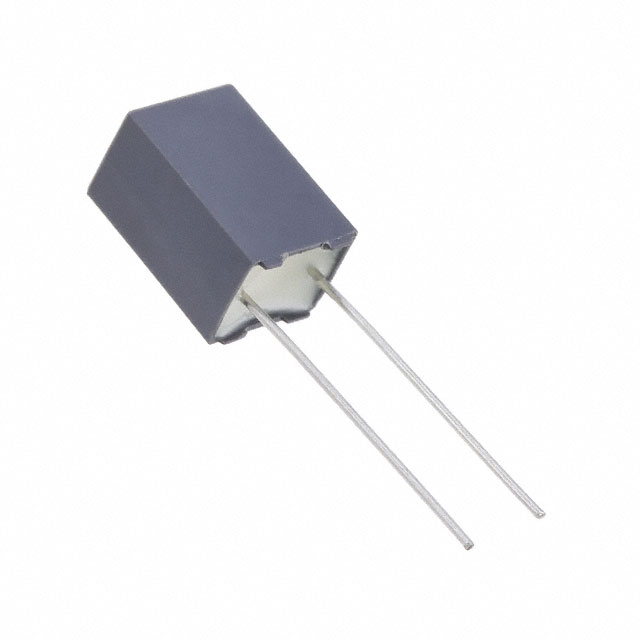

R79PC2100Z340J

Active

KEMET

CAP, 0.01ΜF, 630V, 5%, PP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 0.01ΜF, 630V, 5%, PP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R79PC2100Z340J

Applications	Switching, High Frequency
Capacitance	10000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.437 in
Height - Seated (Max) [Max]	11.1 mm
Lead Spacing	5 mm
Lead Spacing	0.197 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	7.2 mm
Size / Dimension [x]	0.283 in
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	220 V

Part	Dielectric Material	Tolerance	Termination	Mounting Type	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R79PC2100Z340J	Metallized Polypropylene (PP)	5 %	PC Pins	Through Hole	10000 pF	0.437 in	11.1 mm	High Frequency Switching	105 ░C	-55 °C	220 V	Radial	5 mm	0.197 in	7.2 mm	0.283 in	0.236 in	6 mm
KEMET R79PC1470Z340J	Metallized Polypropylene (PP)	5 %	PC Pins	Through Hole	4700 pF			High Frequency Switching	105 ░C	-55 °C	220 V	Radial	5 mm	0.197 in	7.2 mm	0.283 in	0.177 "	4.5 mm	9.6 mm	0.378 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 pF Film Capacitor 220V 630V Polypropylene (PP), Metallized Radial
