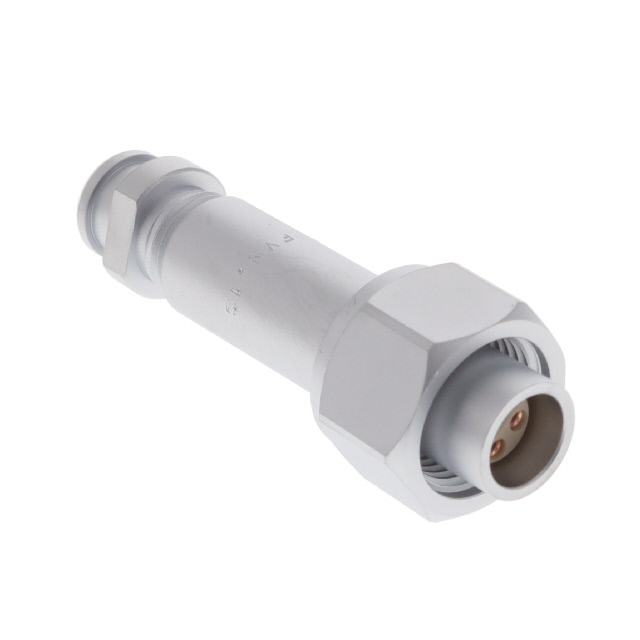

FVN.1S.304.CLYC37Z

Active

LEMO

CONN CIRC PLUG 4POS GOLD

Search across all available documentation for this part.

Active

LEMO

CONN CIRC PLUG 4POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	FVN.1S.304.CLYC37Z

Cable Opening [Max] [custom]	3.7 mm
Cable Opening [Max] [custom]	0.146 in
Cable Opening [Min] [custom]	0.126 in
Cable Opening [Min] [custom]	3.2 mm
Color	Silver
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Bronze, Brass
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	304
Shielding	Shielded

Part	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Shell Material	Color	Current Rating (Amps)	Insert Material	Material Flammability Rating	Number of Positions	Shell Finish	Fastening Type	Connector Type	Shell Size - Insert	Primary Material	Shielding	Orientation	Mounting Type	Contact Material	Contact Finish - Mating	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
LEMO FVN.1S.304.CLYC47Z	IP50	-55 °C	250 °C	0.165 in 0.205 in	4.2 mm	5.2 mm	Brass	Silver	10 A	Polyetheretherketone (PEEK)	UL94 V-0	4	Chrome	Push-Pull	Female Sockets Male Pins Plug	304	Metal	Shielded	Keyed	Free Hanging (In-Line)	Brass Bronze	Gold
LEMO FVN.1S.304.CLYC37Z	IP50	-55 °C	250 °C				Brass	Silver	10 A	Polyetheretherketone (PEEK)	UL94 V-0	4	Chrome	Push-Pull	Female Sockets Male Pins Plug	304	Metal	Shielded	Keyed	Free Hanging (In-Line)	Brass Bronze	Gold	3.7 mm	0.126 in	0.146 in	3.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets and Male Pins
