25481 BK199 - 25481 BK005

25481 BK199

Active
ALPHA WIRE

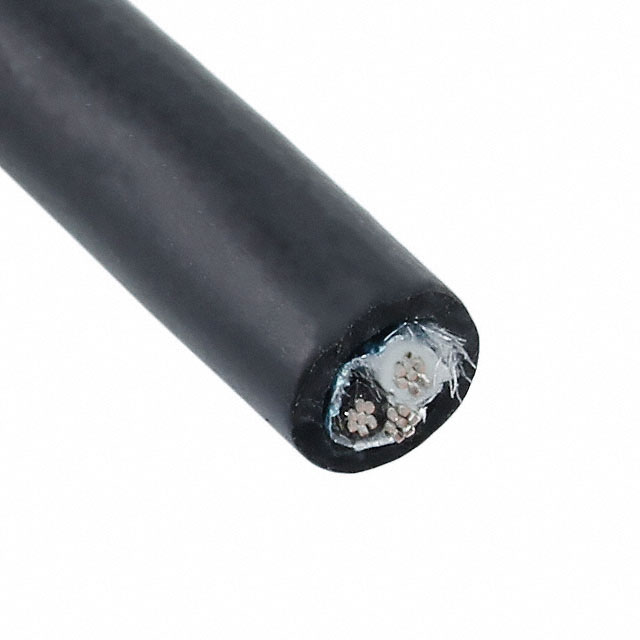

CABLE 2COND 22AWG BLK SHLD FEET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsConductor Color CodingXtra-Guard Catalog+1
25481 BK199 - 25481 BK005

25481 BK199

Active
ALPHA WIRE

CABLE 2COND 22AWG BLK SHLD FEET

Deep-Dive with AI

DocumentsConductor Color CodingXtra-Guard Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification25481 BK199
Cable TypeMulti-Conductor
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]7
Conductor Strand [custom]30 AWG
FeaturesRip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) MaterialPolyurethane (PU)
Jacket ColorBlack
LengthEnter Number of Feet in Order Quantity
Number of Conductors2
Operating Temperature [Max]90 °C
Operating Temperature [Min]-30 ░C
RatingsUL Style 20668, ISO 10993
Shield Coverage100 %
Shield MaterialAluminum
Shield TypeFoil
Spool Size1000 ft
Spool Size304.8 m
Voltage300 V
Wire Gauge22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyDigi-Spool®, Continuous Spool 1$ 5.65
3$ 5.20
5$ 5.02
7$ 4.91
10$ 4.78
25$ 4.50
50$ 4.26
100$ 4.08
Newark1 Foot 1$ 3.37

Description

General part information

25481 Series

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil Enter Number of Feet in Order Quantity
