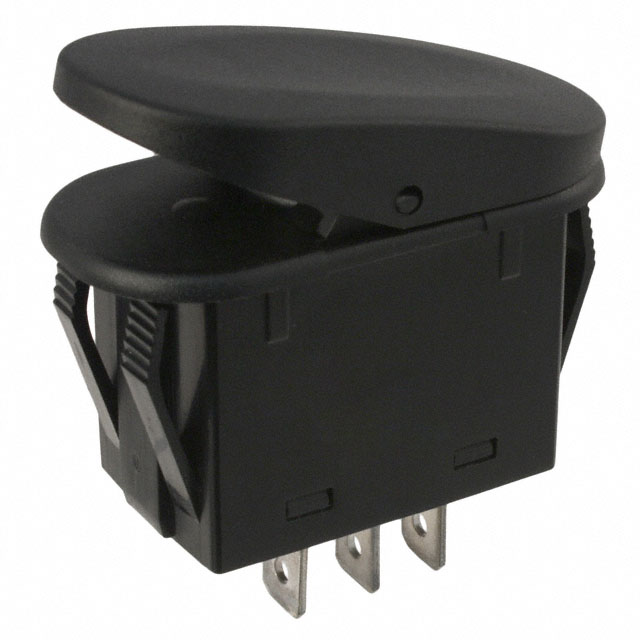

GRB271D1BBNN1NN
ActiveCW Industries
SWITCH ROCKER SPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GRB271D1BBNN1NN
ActiveCW Industries
SWITCH ROCKER SPDT 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GRB271D1BBNN1NN |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Ingress Protection | IP66 |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [x] | 36.6 mm |
| Panel Cutout Dimensions [y] | 21.2 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.16 | |
| 10 | $ 3.71 | |||
| 25 | $ 3.52 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.22 | |||
| 250 | $ 3.08 | |||
Description
General part information
GRB271D Series
Rocker Switch SPDT 20A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
