AOZ1960DI
ObsoleteAlpha & Omega Semiconductor Inc.
IC LED DRIVER RGLTR PWM 2A 24DFN
Deep-Dive with AI
Search across all available documentation for this part.
AOZ1960DI
ObsoleteAlpha & Omega Semiconductor Inc.
IC LED DRIVER RGLTR PWM 2A 24DFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AOZ1960DI |
|---|---|
| Applications | Backlight |
| Current - Output / Channel | 2 A |
| Dimming | Analog, PWM |
| Frequency | 1 MHz |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

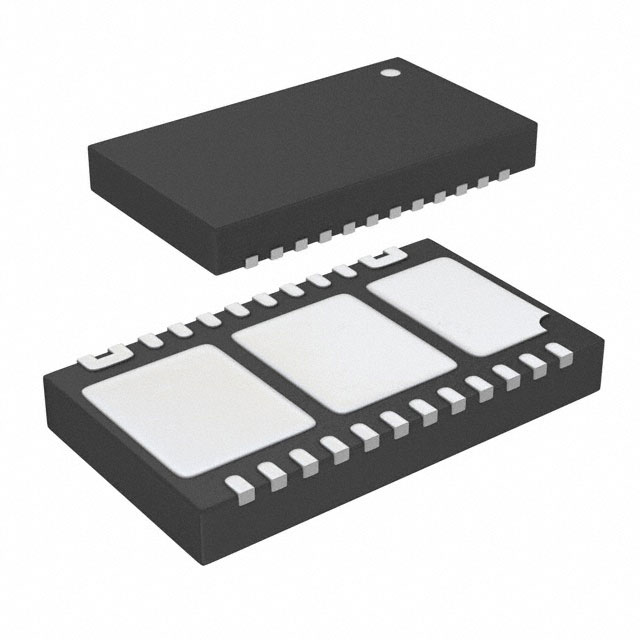

| Package / Case | 24-VFDFN Exposed Pad |
| Supplier Device Package | 24-DFN (7x4) |
| Topology | Step-Up (Boost) |
| Type | DC DC Regulator |
| Voltage - Supply (Max) [Max] | 24 V |
| Voltage - Supply (Min) [Min] | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AOZ1960 Series
LED Driver IC 6 Output DC DC Regulator Step-Up (Boost) Analog, PWM Dimming 2A (Switch) 24-DFN (7x4)
Documents
Technical documentation and resources
