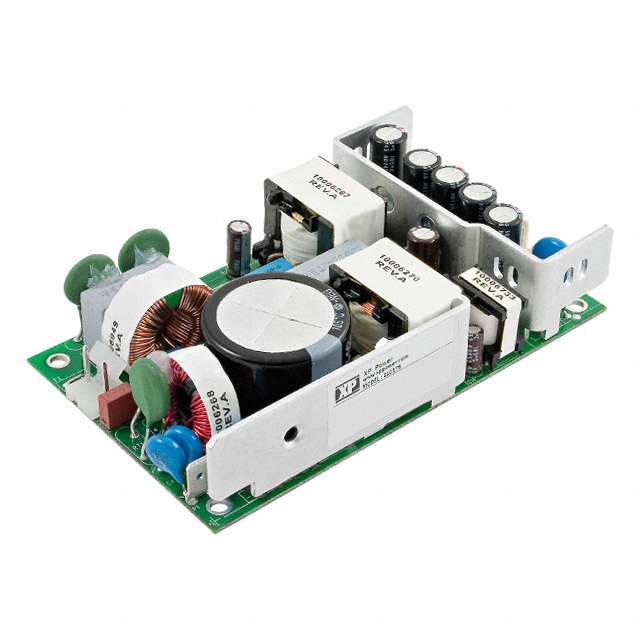

CLC175US12

Active

XP POWER

AC/DC CONVERTER 12V 55W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCLC175 Series TUV Certificate Datasheet +2

CLC175US12

Active

XP POWER

AC/DC CONVERTER 12V 55W

Deep-Dive with AI

DocumentsCLC175 Series TUV Certificate Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CLC175US12

Applications	ITE (Commercial)
Current - Output 1	13.9 A
Efficiency	87 %
Features	Remote On/Off, Remote Sense, DC Input Capable, Adjustable Output, Universal Input, Standby Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	125 W, 55 W
Size / Dimension [x]	101.6 mm
Size / Dimension [x]	4 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Standard Number	62368-1
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

CLC175 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Applications	Current - Output 1	Standard Number	Voltage - Output 1	Number of Outputs	Features	Type	Power (Watts)	Efficiency	Operating Temperature [Max]	Mounting Type
XP POWER CLC175US24-MTF	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial) Medical	6.9 A	62368-1	24 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US12-MTF	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial) Medical	13.9 A	62368-1	12 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US48-MTF	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial) Medical	3.5 A	62368-1	48 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US12-TF	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial)	13.9 A	62368-1	12 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US24-TF	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial)	6.9 A	62368-1	24 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Enclosed	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US24	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial)	6.9 A	62368-1	24 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US12	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial)	13.9 A	62368-1	12 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	55 W 125 W	87 %	70 °C	Chassis Mount
XP POWER CLC175US48	2 in	1.25 "	31.8 mm	50.8 mm	101.6 mm	4 in	3000 V	ITE (Commercial)	3.5 A	62368-1	48 V	1	Adjustable Output DC Input Capable Remote On/Off Remote Sense Standby Output Universal Input	Open Frame	55 W 125 W	87 %	70 °C	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 156.39
		5	$ 151.70
		10	$ 147.01
		25	$ 140.75
		100	$ 131.37
