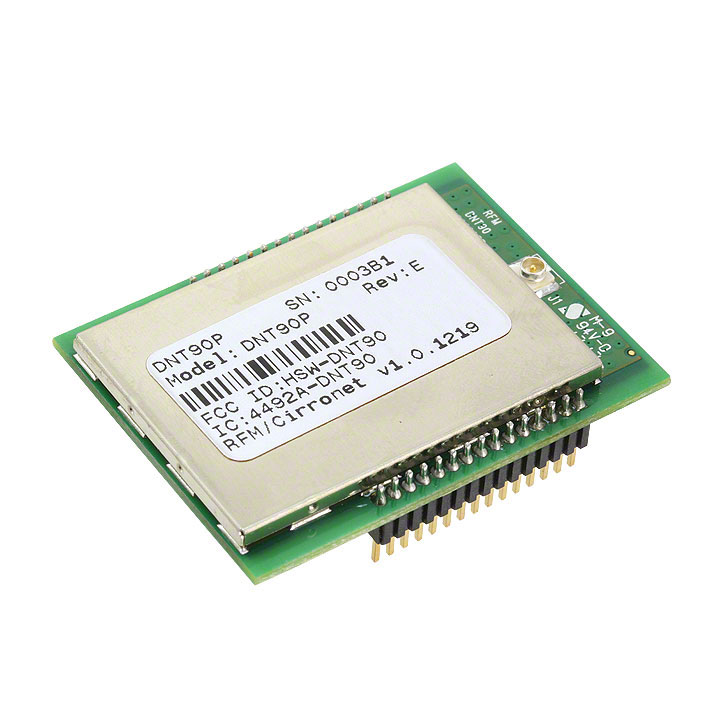

DNT90P

Obsolete

Murata Power Solutions Inc.

RF TXRX MOD ISM<1GHZU.FL TH

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

RF TXRX MOD ISM<1GHZU.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Antenna Type	Frequency	Modulation	Current - Receiving	Package / Case	Data Rate	Power - Output	Mounting Type	Current - Transmitting	Voltage - Supply	RF Family/Standard	Sensitivity	Current - Receiving [Max]	Current - Receiving [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Utilized IC / Part
Murata Power Solutions Inc. DNT90MC	85 °C	-40 °C	SPI UART	Antenna Not Included U.FL	900 MHz	FHSS	40 mA	30-SMD Module	500 kbps	22 dBm	Surface Mount	170 mA	3.3 V	General ISM < 1GHz	-100 dBm
Murata Power Solutions Inc. DNT90C	85 °C	-40 °C	SPI UART	Antenna Not Included U.FL	900 MHz	FHSS FSK			500 kbps	22 dBm	Surface Mount	170 mA		General ISM < 1GHz	-100 dBm	110 mA	25 mA	3.3 V	5.5 V
Murata Power Solutions Inc. DNT90P	85 °C	-40 °C	SPI UART	Antenna Not Included U.FL	900 MHz	FHSS FSK		Module	500 kbps	22 dBm	Through Hole	170 mA		General ISM < 1GHz	-100 dBm	110 mA	25 mA	3.3 V	5.5 V	TRC103

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 900MHz Antenna Not Included, U.FL Through Hole

Technical documentation and resources

No documents available
