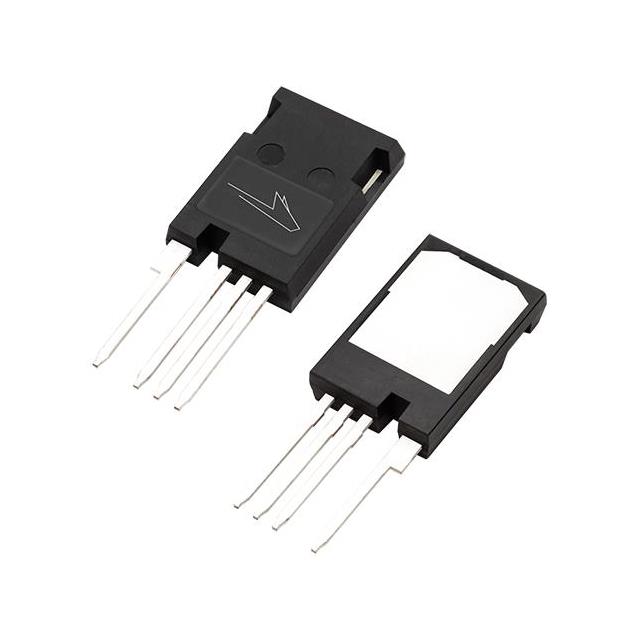

SICFET N-CH 1700V 72A TO247-4

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 1700V 72A TO247-4

Technical Specifications

Parameters and characteristics for this part

Specification	C2M0045170P

Current - Continuous Drain (Id) @ 25°C	72 A
Drain to Source Voltage (Vdss)	1700 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	188 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	3672 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-247-4
Power Dissipation (Max) [Max]	520 W
Rds On (Max) @ Id, Vgs	59 mOhm
Supplier Device Package	TO-247-4L
Vgs (Max) [Max]	25 V
Vgs (Max) [Min]	-10 V
Vgs(th) (Max) @ Id [Max]	4 V

Part	Rds On (Max) @ Id, Vgs	Vgs (Max) [Min]	Vgs (Max) [Max]	Drain to Source Voltage (Vdss)	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Continuous Drain (Id) @ 25°C	Vgs(th) (Max) @ Id [Max]	Power Dissipation (Max) [Max]	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Package / Case	FET Type
Wolfspeed C2M0045170P	59 mOhm	-10 V	25 V	1700 V	Through Hole	188 nC	150 °C	-40 °C	72 A	4 V	520 W	TO-247-4L	3672 pF	TO-247-4	N-Channel
