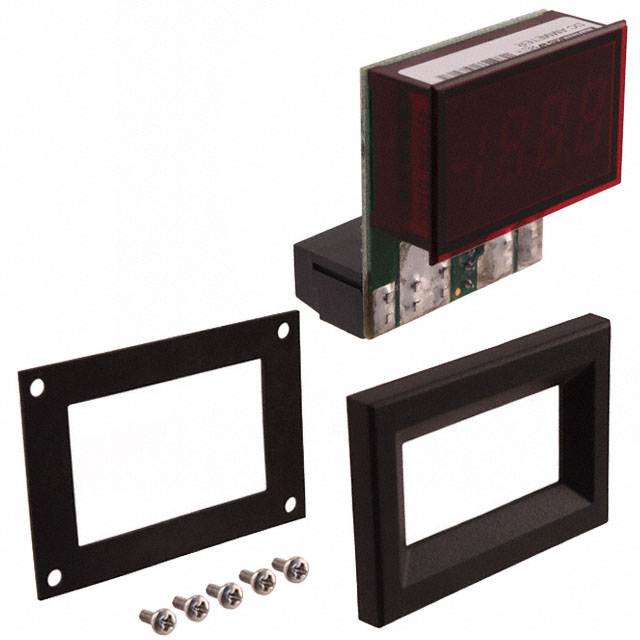

DCA-20PC-4-DC4-RL-C

Active

Murata Power Solutions Inc.

AMMETER, DCA-20PC SERIES, DC CURRENT, 0MA TO 199.9MA, 3.5 DIGITS, 8 VDC TO 36 VDC, BUILT IN SHUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

DCA-20PC-4-DC4-RL-C

Active

Murata Power Solutions Inc.

AMMETER, DCA-20PC SERIES, DC CURRENT, 0MA TO 199.9MA, 3.5 DIGITS, 8 VDC TO 36 VDC, BUILT IN SHUNT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DCA-20PC-4-DC4-RL-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LED - Red Characters
Measuring Range [Max]	199.9 mA
Measuring Range [Min]	0 A
Measuring Type	Current
Mounting Type	Panel Mount - Bezel
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	8 V
Weight	0.037 lb
Weight	16.78 g

DCA-20PC Series

Digital Panel Meters 199.9mA 0.1 Ohms Low-Power Blue

Part	Termination Style	Weight	Weight	Measuring Range [Min]	Measuring Range [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Number of Characters Per Row	Display Characters - Height	Display Characters - Height	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Type	Measuring Type	Display Type
Murata Power Solutions Inc. DCA-20PC-6-DC1-RL-C	Screw Terminal	0.037 lb	16.78 g	0	19.99 A	40 VDC	5 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-1-DC1-PGL-C	Screw Terminal	0.038 lb	17.24 g		199.9 µA	40 VDC	5 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Green Characters
Murata Power Solutions Inc. DCA-20PC-5-DC4-BS-C	Screw Terminal	0.038 lb	17.24 g	0 A	1.999 A	36 V	8 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current
Murata Power Solutions Inc. DCA-20PC-3-DC4-RL-C	Screw Terminal	0.038 lb	17.24 g	0 A	19.99 mA	36 V	8 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-4-DC4-RL-C	Screw Terminal	0.037 lb	16.78 g	0 A	199.9 mA	36 V	8 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Red Characters
Murata Power Solutions Inc. DCA-20PC-6-DC4-BS-C	Screw Terminal	0.038 lb	17.24 g	0	19.99 A	36 V	8 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current
Murata Power Solutions Inc. DCA-20PC-1-DC4-GS-C	Screw Terminal	0.038 lb	17.24 g		199.9 µA	36 V	8 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Green Characters
Murata Power Solutions Inc. DCA-20PC-5-DC1-RL-C	Screw Terminal	0.037 lb	16.78 g	0 A	1.999 A	40 VDC	5 V	60 °C	3.5	9.4 mm	0.37 in	33.93 mm	21.29 mm	Panel Mount - Bezel	Ammeter	Current	LED - Red Characters

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.92
		5	$ 66.99
		10	$ 61.79
		25	$ 57.17
		50	$ 54.86
		100	$ 54.60
Newark	Each	10	$ 70.77
		25	$ 69.89
		50	$ 68.14
		100	$ 64.65
		250	$ 60.28

Description

General part information

DCA-20PC Series

Digital Panel Meters 199.9mA 0.1 Ohms Low-Power Blue

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
