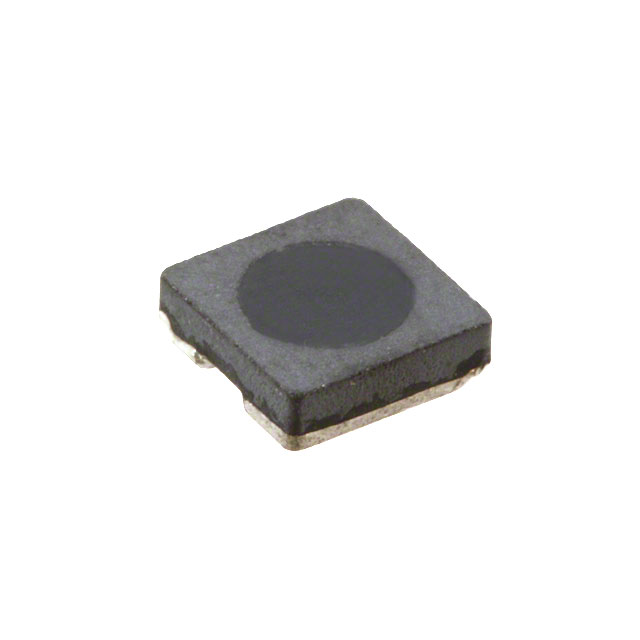

SRR3011-2R5YL - SRR3011

SRR3011-2R5YL

Active
Bourns Inc.

IND3.8X3.8X1.15MM,2.5UH30%1.2A,SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SRR3011-2R5YL - SRR3011

SRR3011-2R5YL

Active
Bourns Inc.

IND3.8X3.8X1.15MM,2.5UH30%1.2A,SHDSMD /TAPE & REEL - 7" REEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSRR3011-2R5YL
Current - Saturation (Isat)1 A
Current Rating (Amps)1.2 A
DC Resistance (DCR) [Max]85 mOhm
Frequency - Self Resonant112 MHz
Height - Seated (Max) [Max] [z]1.3 mm
Height - Seated (Max) [Max] [z]0.051 in
Inductance2.5 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
Q @ Freq7, 7.96 MHz
ShieldingShielded
Tolerance30 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.63
10$ 0.52
25$ 0.62
50$ 0.57
100$ 0.43
250$ 0.48
500$ 0.41
Digi-Reel® 1$ 0.63
10$ 0.52
25$ 0.62
50$ 0.57
100$ 0.43
250$ 0.48
500$ 0.41
Tape & Reel (TR) 1200$ 0.34
2400$ 0.32
3600$ 0.31
6000$ 0.30
8400$ 0.29
12000$ 0.28
30000$ 0.28
NewarkEach (Supplied on Full Reel) 1$ 0.40
5000$ 0.39
10000$ 0.36
20000$ 0.33
30000$ 0.31
50000$ 0.30

Description

General part information

SRR3011 Series

2.5 µH Shielded Drum Core, Wirewound Inductor 1.2 A 85mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Datasheet
