131J15019X
ActiveAmphenol CONEC
CONN D-SUB PIN 20-24AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
131J15019X
ActiveAmphenol CONEC
CONN D-SUB PIN 20-24AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 131J15019X |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Termination Finish | Gold |
| Type | Signal |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
131J150 Series

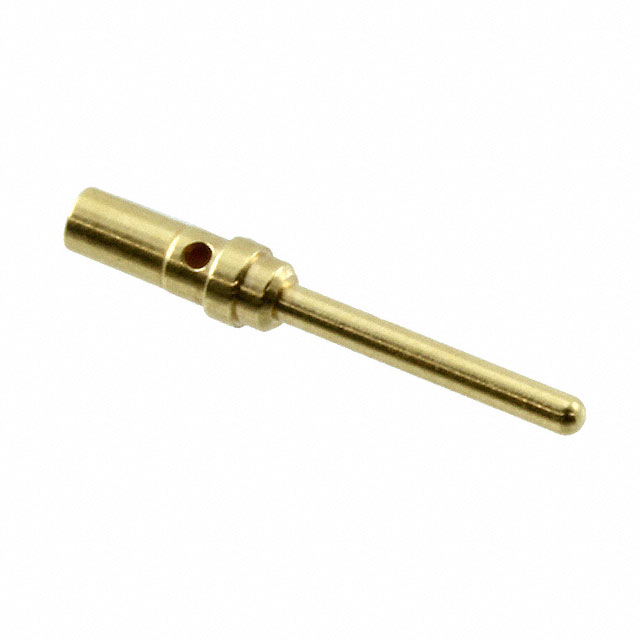

D-Sub Contact Male Pin Gold 20-24 AWG Crimp Machined
