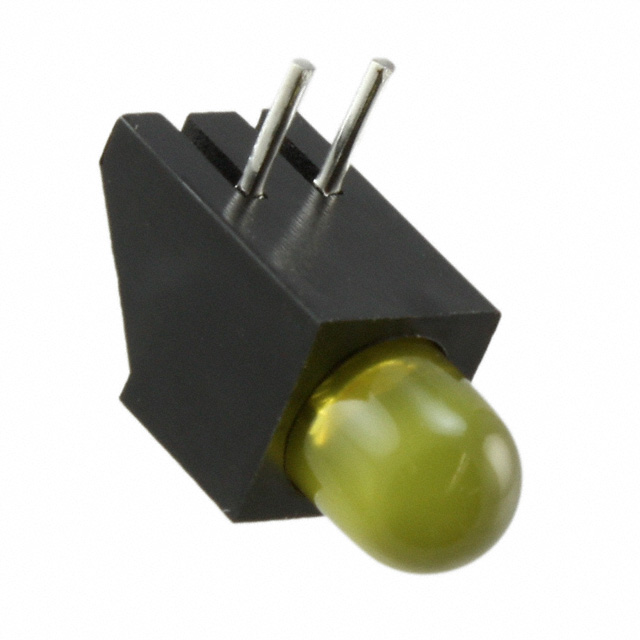

WP1533BQ/YD

Active

Kingbright

LED UNI-COLOR YELLOW 590NM 2-PIN TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP1533BQ/YD

Active

Kingbright

LED UNI-COLOR YELLOW 590NM 2-PIN TUBE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP1533BQ/YD

Color	Yellow
Configuration	Single
Lens Size [diameter]	4.7 mm
Lens Style	Round with Domed Top
Lens Type	Diffused, Yellow
Millicandela Rating	40 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V
Wavelength - Peak	590 nm

WP1533 Series

Part	Panel Cutout Shape	Lens Size [diameter]	Type	Ratings	Lens Color	Wavelength - Peak	Lens Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating	Lamp Color	Lens Transparency	Current	Voltage	Viewing Angle	Configuration	Lens Type	Mounting Type	Color	Voltage Rating
Kingbright WP1533AA/SRD14V-W152	Round	4.7 mm	LED	DC	Red	655 nm	Round with Domed Top	6.35 mm	0.25 "	100 mcd	Red	Diffused	10.5 mA	14 V	60 °
Kingbright WP1533AA/ID-W152	Round	4.7 mm	LED		Red	627 nm	Round with Domed Top	6.35 mm	0.25 "	70 mcd	Red	Diffused	30 mA	2 V	60 °
Kingbright WP1533AA/GD-W152	Round	4.7 mm	LED		Green	565 nm	Round with Domed Top	6.35 mm	0.25 "	50 mcd	Green	Diffused	25 mA	2.2 V	60 °
Kingbright WP1533BQ/GD		4.7 mm				565 nm	Round with Domed Top			50 mcd			25 mA		60 °	Single	Diffused Tinted	Through Hole Right Angle	Green
Kingbright WP1533AA/YD-W152	Round	4.7 mm	LED		Yellow	590 nm	Round with Domed Top	6.35 mm	0.25 "	40 mcd	Yellow	Diffused	30 mA	2.1 V	60 °
Kingbright WP1533AA/SRD-W152	Round	4.7 mm	LED		Red	660 nm	Round with Domed Top	6.35 mm	0.25 "	700 mcd	Red	Diffused	30 mA	1.85 V	60 °
Kingbright WP1533BQ/YD		4.7 mm				590 nm	Round with Domed Top			40 mcd					60 °	Single	Diffused Yellow	Through Hole Right Angle	Yellow	2.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

WP1533 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Yellow Diffused, Yellow 2.1V 20mA Round with Domed Top 4.70mm Dia Through Hole, Right Angle
