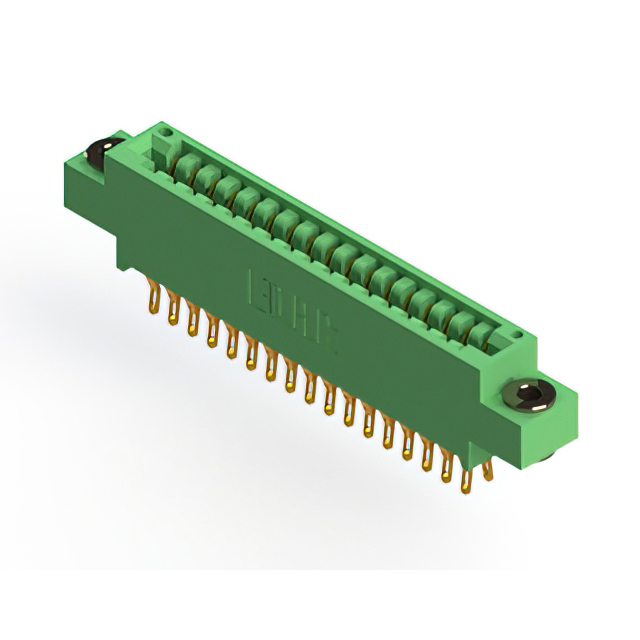

346-034-555-803

Active

EDAC Inc.

3.18MM CLAMP BOARD 34P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-034-555-803

Active

EDAC Inc.

3.18MM CLAMP BOARD 34P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-034-555-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

346-034 Series

...

Part	Contact Material	Flange Feature	Gender	Number of Positions	Termination	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination Rows	Contact Finish	Read Out	Card Type	Pitch [x]	Pitch [x]	Color	Features	Material - Insulation	Mounting Type	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 346-034-520-258	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female	34	Solder	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green	Card Guides	Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C
EDAC Inc. 346-034-541-878	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Female	34	Wire Wrap	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green	Card Guides	Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C
EDAC Inc. 346-034-540-103	Copper Alloy	Floating Bobbin Flush Mount	Female	34	Wire Wrap	1	10 Áin	0.25 Ám	1	Gold	Single	Non Specified - Single Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	0.116 in	2.95 mm	34
EDAC Inc. 346-034-500-812	Copper Alloy	Side Mount Opening Unthreaded	Female	34	Solder Eyelet(s)	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C				3.25 mm	0.128 in
EDAC Inc. 346-034-555-803	Copper Alloy	Floating Bobbin Top Mount Opening	Female	34	Solder Eyelet(s)	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green	Card Extender	Polyester Thermoplastic	Board Edge Straddle Mount	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	0.116 in	2.95 mm
EDAC Inc. 346-034-541-608	Copper Alloy	4-40 Threaded Insert Top Mount Opening	Female	34	Wire Wrap	1	10 Áin	0.25 Ám	1	Gold	Single	Non Specified - Single Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C			34
EDAC Inc. 346-034-558-604	Copper Alloy	Top Mount Opening Unthreaded	Female	34	Solder Wire Wrap	1	10 Áin	0.25 Ám	1	Gold	Single	Non Specified - Single Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole Right Angle	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	0.156 in	3.96 mm	34
EDAC Inc. 346-034-500-258	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female	34	Solder Eyelet(s)	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green	Card Guides	Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C
EDAC Inc. 346-034-558-208	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	Female	34	Solder Wire Wrap	2	10 Áin	0.25 Ám	2	Gold	Dual	Non Specified - Dual Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole Right Angle	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C
EDAC Inc. 346-034-541-612	Copper Alloy	Side Mount Opening Unthreaded	Female	34	Wire Wrap	1	10 Áin	0.25 Ám	1	Gold	Single	Non Specified - Single Edge	0.125 in	3.18 mm	Green		Polyester Thermoplastic	Through Hole	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C			34	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.03
LCSC	Piece	1	$ 14.13
		200	$ 5.47
		500	$ 5.27
		1000	$ 5.18

Description

General part information

346-034 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
