W2P15X7W04-U100D3B0A
ActiveKyocera AVX
ANT ASSY, WLAN2 04 100 D0230
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W2P15X7W04-U100D3B0A
ActiveKyocera AVX
ANT ASSY, WLAN2 04 100 D0230
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W2P15X7W04-U100D3B0A |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 6.525 GHz, 5.5 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.85 GHz, 7.125 GHz |
| Frequency Range [Min] | 5.925 GHz, 5.15 GHz |
| Gain | 4.3 dBi, 3.9 dBi |
| Height (Max) [Max] [z] | 0.016 in |
| Height (Max) [Max] [z] | 0.4 mm |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss [Max] | -7.3 dB |
| Return Loss [Min] | -9 dB |
| RF Family/Standard | WiFi |
| Termination | U.FL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.71 | |
| 10 | $ 2.43 | |||
| 25 | $ 2.10 | |||
| 100 | $ 1.73 | |||
| 400 | $ 1.47 | |||
| 800 | $ 1.37 | |||
| 1200 | $ 1.32 | |||
| 2800 | $ 1.23 | |||
| 5200 | $ 1.18 | |||
Description
General part information
W2P15X7 Series

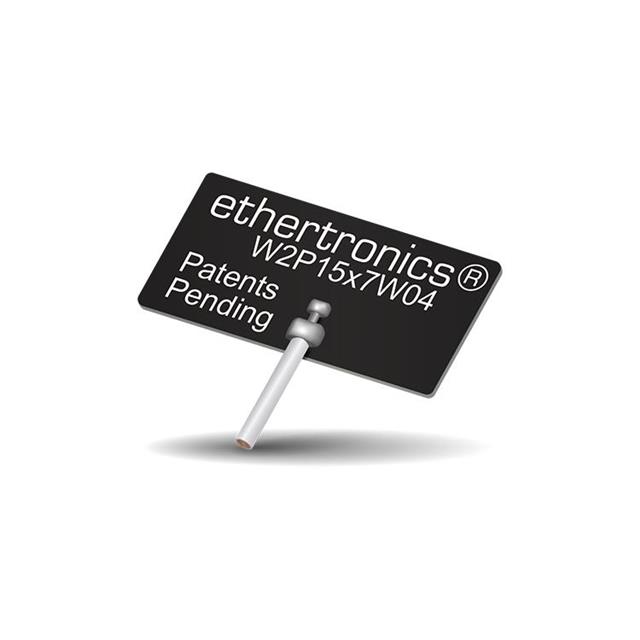

RF ANTENNA Wi-Fi PCB Trace U.FL Adhesive
