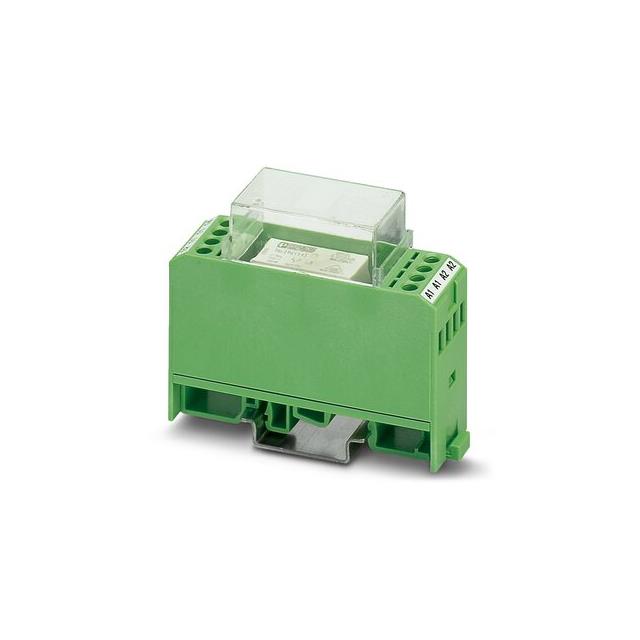

2947721

Active

Phoenix Contact

RELAY: INTERFACE; SPDT; UCOIL: 24VAC,24VDC; 50MA; 0.05A/30VAC

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY: INTERFACE; SPDT; UCOIL: 24VAC,24VDC; 50MA; 0.05A/30VAC

Technical Specifications

Parameters and characteristics for this part

Specification	2947721

Approval Agency	EAC
Coil Current	18 mA
Coil Resistance	1.3 kOhms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Load - Max Switching	1500 VA, 144 W
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Features	Mounting Type	Contact Form	Relay Type	Contact Material	Coil Voltage	Coil Type	Load - Max Switching	Coil Current	Operate Time	Switching Voltage	Coil Resistance	Release Time	Termination Style	Contact Rating (Current)	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]
Phoenix Contact 2947718	Socket Included	DIN Rail	DPDT (2 Form C)	General Purpose	Gold (Au) Silver Nickel (AgNi)	24 VAC	Non Latching
Phoenix Contact 2947721	Lighted Indicator Socket Included	DIN Rail	SPDT (1 Form C)	General Purpose	Gold (Au) Silver Nickel (AgNi)	24 VAC	Non Latching	144 W 1500 VA	18 mA	8 ms	250 VAC 250 VDC	1.3 kOhms	10 ms	Screw Terminal	6 A	EAC	50 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.83

General part information

General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail
