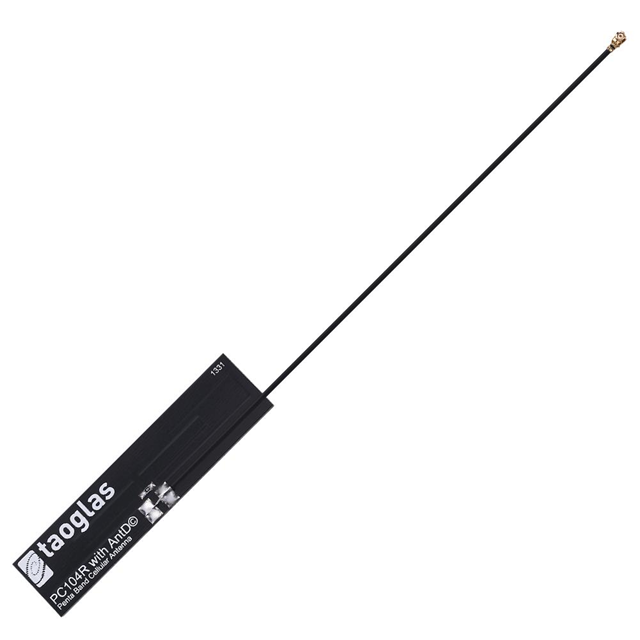

PC104R.A.07.0165C
ActiveTAOGLAS
RF ANT 892MHZ/1.9GHZ FLAT PATCH
Deep-Dive with AI
Search across all available documentation for this part.
PC104R.A.07.0165C
ActiveTAOGLAS
RF ANT 892MHZ/1.9GHZ FLAT PATCH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PC104R.A.07.0165C |
|---|---|
| Antenna Type | Flat Patch |
| Applications | UMTS, GSM, CDMA |
| Frequency (Center/Band) | 1.9 GHz, 892 MHz |
| Frequency Range [Max] | 960 MHz, 2.17 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 2.39 dBi, 0.99 dBi |
| Height (Max) [Max] [z] | 1 mm |
| Height (Max) [Max] [z] | 0.039 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Power - Max [Max] | 50 W |
| Return Loss | -10 dB, -7 dB |
| RF Family/Standard | Cellular |
| Termination | I-PEX MHF1, U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 25.16 | |
| 100 | $ 18.83 | |||
| 500 | $ 11.41 | |||
| 1000 | $ 9.94 | |||
Description
General part information
PC104 Series
RF ANTENNA CDMA, GSM, UMTS Flat Patch U.FL (UMCC), I-PEX MHF1 Adhesive
Documents
Technical documentation and resources
No documents available
