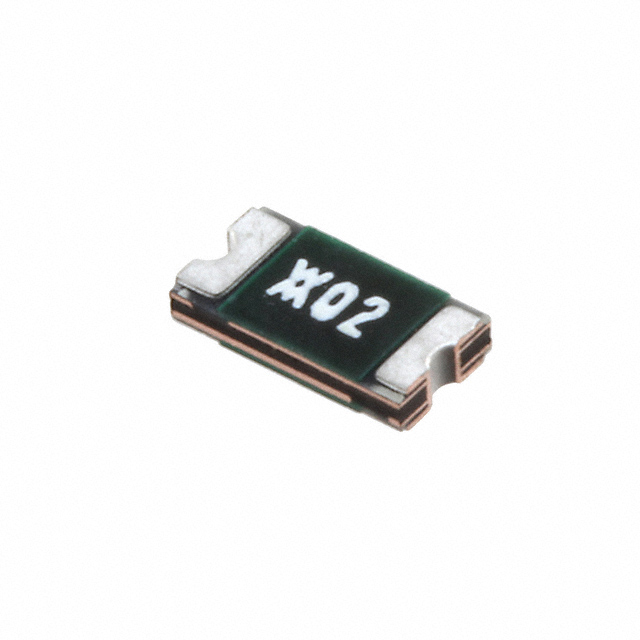

RF5030-000
ActiveLittelfuse/Commercial Vehicle Products
NANOASMDCH005F-2/ TR
Deep-Dive with AI
Search across all available documentation for this part.
RF5030-000
ActiveLittelfuse/Commercial Vehicle Products
NANOASMDCH005F-2/ TR
Technical Specifications
Parameters and characteristics for this part
| Specification | RF5030-000 |
|---|---|
| Approval Agency | TUV, UR |
| Current - Hold (Ih) (Max) [Max] | 50 mA |
| Current - Max [Max] | 20 A |
| Current - Trip (It) | 150 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3216 Metric |
| Package / Case | 1206 |
| Package / Case | Concave |
| Qualification | AEC-Q200 |
| Resistance - Initial (Ri) (Min) [Min] | 3.5 Ohms |
| Resistance - Post Trip (R1) (Max) [Max] | 35 Ohms |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.59 mm |
| Thickness (Max) [Max] | 0.033 in |
| Thickness (Max) [Max] | 0.85 mm |
| Time to Trip | 20 s |
| Type | Polymeric |
| Voltage - Max [Max] | 30 V |
