C6D04065E-TR

Active

Wolfspeed

DIODE SCHOTTKY SIC 650V 16A 3-PIN(2+TAB) TO-252 T/R

Search across all available documentation for this part.

Active

Wolfspeed

DIODE SCHOTTKY SIC 650V 16A 3-PIN(2+TAB) TO-252 T/R

Technical Specifications

Parameters and characteristics for this part

Specification	C6D04065E-TR

Capacitance @ Vr, F	256 pF
Current - Average Rectified (Io)	16 A
Current - Reverse Leakage @ Vr	20 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C

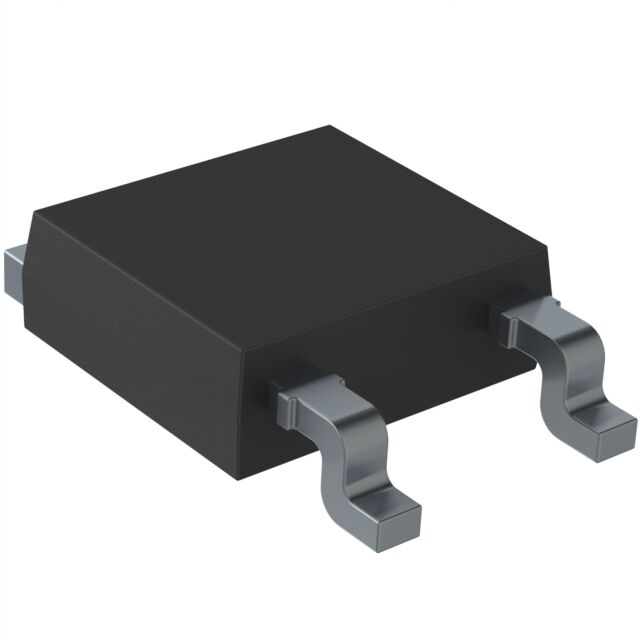

Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-252-2
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	1.5 V

Part	Current - Average Rectified (Io)	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Mounting Type	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Speed	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]
Wolfspeed C6D04065A	18 A	SiC (Silicon Carbide) Schottky	TO-220-2	650 V	TO-220-2	Through Hole	0 ns	1.27 V	No Recovery Time
Wolfspeed C6D04065E-TR	16 A	SiC (Silicon Carbide) Schottky	DPAK (2 Leads + Tab) SC-63 TO-252-3	650 V	TO-252-2	Surface Mount	0 ns	1.5 V	No Recovery Time	20 µA	256 pF	175 ░C	-55 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 650 V 16A Surface Mount TO-252-2
