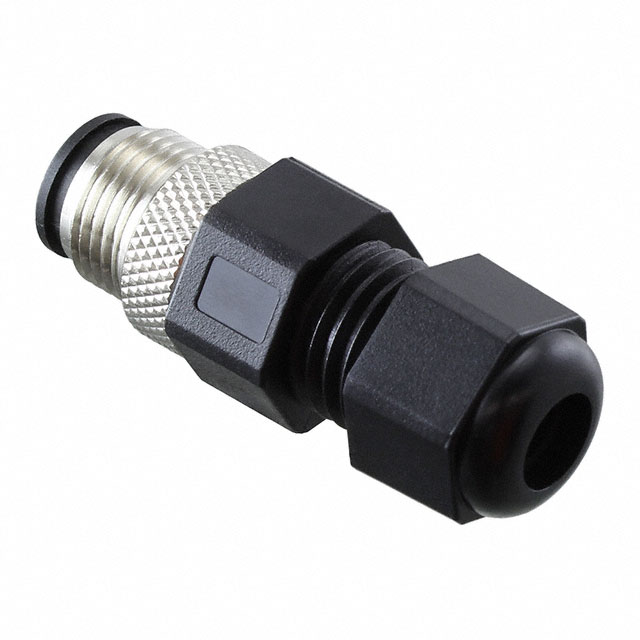

511M-3033-W05

Active

CnC Tech, LLC

CONN M12 CIRCULAR PIN 5 POS SOLDER CUP ST CABLE MOUNT 5 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN M12 CIRCULAR PIN 5 POS SOLDER CUP ST CABLE MOUNT 5 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	511M-3033-W05

Backshell Material, Plating	Polycarbonate (PC)
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	6 µin
Contact Finish Thickness - Mating	0.152 µm
Contact Material	Brass
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M12-5
Shielding	Unshielded

Part	Color	Ingress Protection	Shell Material	Insert Material	Contact Material	Primary Material	Orientation	Shell Finish	Features	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish - Mating
CnC Tech, LLC 511M-3033-W05	Black Silver	IP68 - Dust Tight Waterproof	Brass	Glass Filled Nylon 6/6 Polyamide (PA66)	Brass	Metal	A	Nickel	Backshell	Free Hanging (In-Line)	6 µin	0.152 µm	Polycarbonate (PC)	Male Pins Receptacle	M12-5	-40 °C	105 ░C	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
