2.5NFP9C

Active

HELLERMANNTYTON

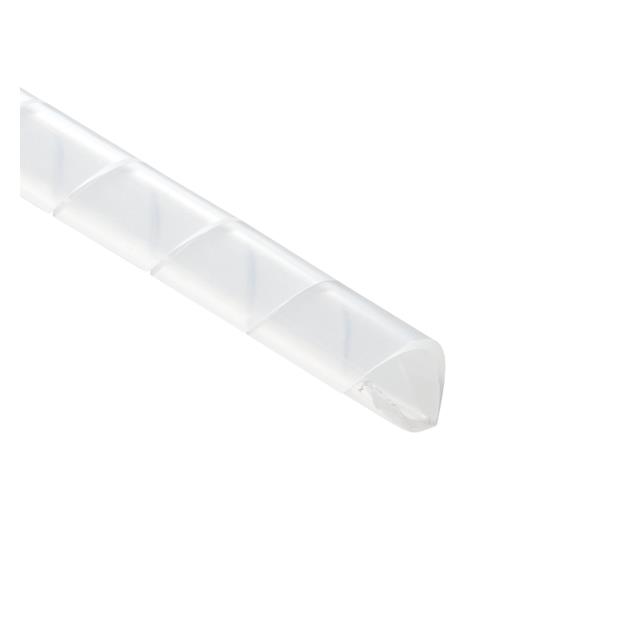

SPIRAL WRAP, 0.375 ", 9.53 MM, POLYETHYLENE, NATURAL, 100 FT, 30.5 M

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP, 0.375 ", 9.53 MM, POLYETHYLENE, NATURAL, 100 FT, 30.5 M

Technical Specifications

Parameters and characteristics for this part

Specification	2.5NFP9C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded	76.2 mm
Diameter - Inside, Expanded [diameter]	3 in
Diameter - Outside, Non-Expanded [diameter]	0.375 "
Diameter - Outside, Non-Expanded [diameter]	9.52 mm
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness [custom]	1.32 mm
Wall Thickness [custom]	0.052 in

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Abrasion Protection	Color	Diameter - Inside, Expanded	Diameter - Inside, Expanded [diameter]	Environment Protection	Wall Thickness [custom]	Wall Thickness [custom]	Features	Type Attributes	Material Flammability Rating	Type	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Material
HELLERMANNTYTON 2.5N0C	0.375 "	9.52 mm	Abrasion Resistant	Black	76.2 mm	3 in	UV Resistant	0.89 mm	0.035 in	Acid Resistant Chemical Resistant Self Extinguishing	Harness	UL94 V-2	Spiral Wrap	100 ft	30.48 m	-40 °C	121 °C
HELLERMANNTYTON 2.5NFP9C	0.375 "	9.52 mm	Abrasion Resistant	Natural	76.2 mm	3 in		1.32 mm	0.052 in	Chemical Resistant Solvent Resistant	Harness		Spiral Wrap	100 ft	30.48 m	-60 °C	88 °C	Polyethylene (PE)
HELLERMANNTYTON 2.5N9C	0.375 "	9.52 mm	Abrasion Resistant	Natural	76.2 mm	3 in		0.89 mm	0.035 in	Acid Resistant Chemical Resistant Self Extinguishing	Harness	UL94 V-2	Spiral Wrap	100 ft	30.48 m	-40 °C	121 °C
