BU-P3782-48-2

Active

Mueller Electric Co

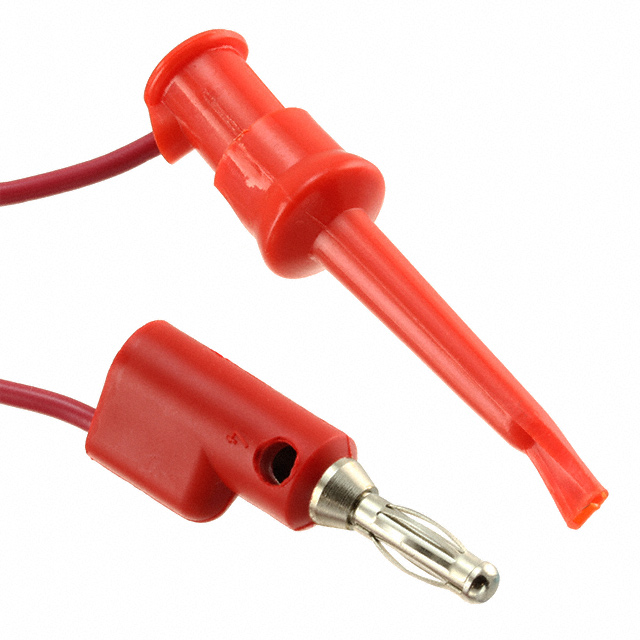

TEST LEAD, PLUG TO CLIP, RED, 5A, 4' ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-P3782-48-2

Active

Mueller Electric Co

TEST LEAD, PLUG TO CLIP, RED, 5A, 4' ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-P3782-48-2

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	48 in
Cable Length	1219.2 mm
Configuration	Banana to Grabber, Hook
Contents	Red
Contents [custom]	1
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	300 V
Wire Gauge	20 AWG

BU-P3782 Series

Part	Contents	2nd Connector	Configuration	Wire Gauge	Type	Stacking Method	1st Connector	Material - Insulation	Cable Length	Cable Length	Current Rating (Amps)	Voltage - Rated	Contents [custom]
Mueller Electric Co BU-P3782-48-0	1 Lead Black	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	48 in	1219.2 mm	5 A	300 V
Mueller Electric Co BU-P3782-24-2	Red	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	5 A	300 V	1
Mueller Electric Co BU-P3782-36-2	Red	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	36 in	914.4 mm	5 A	300 V	1
Mueller Electric Co BU-P3782-12-0	1 Lead Black	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	12 in	304.8 mm	5 A	300 V
Mueller Electric Co BU-P3782-48-2	Red	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	48 in	1219.2 mm	5 A	300 V	1
Mueller Electric Co BU-P3782-24-0	1 Lead Black	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	24 "	609.6 mm	5 A	300 V
Mueller Electric Co BU-P3782-60-0	1 Lead Black	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	5 ft	1524 mm	5 A	300 V
Mueller Electric Co BU-P3782-36-0	1 Lead Black	Mini Hook	Banana to Grabber Hook	20 AWG	Patch Cord	Front and Vertical Multi-Stacking	Banana Plug Single Stackable	Poly-Vinyl Chloride (PVC)	36 in	914.4 mm	5 A	300 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.00
		10	$ 7.77
		100	$ 7.41
		500	$ 7.17
		1000	$ 6.80
Newark	Each	1	$ 11.48

Description

General part information

BU-P3782 Series

48.0" (1219.20mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 300V
