Technical Specifications

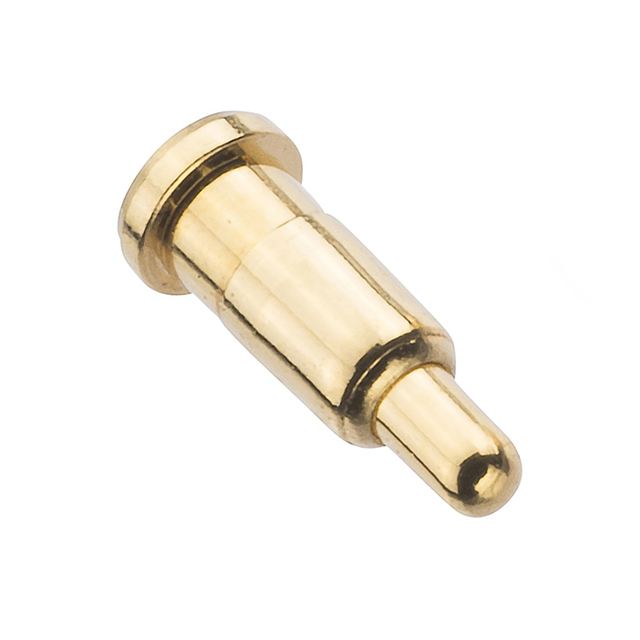

Parameters and characteristics for this part
| Specification | P70-1010045R |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Brass |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 10000 |
| Maximum Working Height [Max] | 4.2 mm |
| Maximum Working Height [Max] | 0.165 in |
| Minimum Working Height [Min] | 0.146 in |
| Minimum Working Height [Min] | 3.7 mm |
| Mounting Type | Surface Mount |
| Operating Force - Mid Compression | 119.31 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pad Layout Dimension [diameter] | 2.2 mm |
| Pad Layout Dimension [diameter] | 0.087 in |
| Plunger Size [diameter] | 0.035 in |
| Plunger Size [diameter] | 0.9 mm |
| Recommended Working Height [z] | 0.157 in |
| Recommended Working Height [z] | 4 mm |
