11051052633

Active

HARTING Technology Group

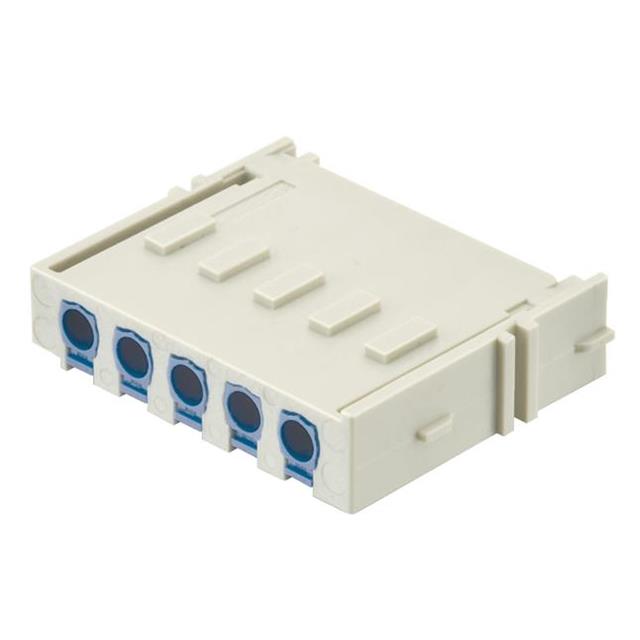

HAN-YELLOCK QUICKLOCK MODULE FOR AWG 20 14 (0.5-2.5MM2)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-YELLOCK QUICKLOCK MODULE FOR AWG 20 14 (0.5-2.5MM2)

Technical Specifications

Parameters and characteristics for this part

Specification	11051052633

Color	Gray
Connector Type	Module
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Termination Style	Push In with Lock
Voltage Rating	500 V

Part	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Housing Material	Color	Current Rating (Amps)	Termination Style	Voltage Rating	Gender	Contact Finish
HARTING Technology Group 11051052634	Copper Alloy	UL94 V-0	125 °C	-40 °C	Module	Polycarbonate (PC)	Gray	10 A	Push In with Lock	500 V	Male	Silver
HARTING Technology Group 11051052823			125 °C	-40 °C	Insert Multiplier	Polycarbonate (PC)	Red				Female
HARTING Technology Group 11051052803	Copper Alloy		125 °C	-40 °C	Insert Multiplier	Polycarbonate (PC)	Red	16 A		500 V	Female
HARTING Technology Group 11051052633	Copper Alloy	UL94 V-0	125 °C	-40 °C	Module	Polycarbonate (PC)	Gray	20 A	Push In with Lock	500 V	Male	Silver
HARTING Technology Group 11051052805	Copper Alloy		125 °C	-40 °C	Insert Multiplier	Polycarbonate (PC)	Red	16 A		500 V	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 5 Position Push In with Lock
