SFV10R-4STE1HLF

Active

Amphenol ICC (FCI)

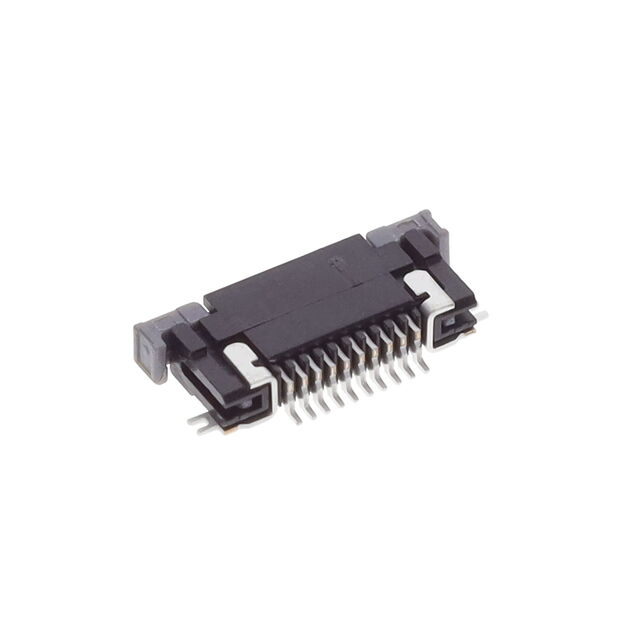

CONN FPC TOP 10POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +1

SFV10R-4STE1HLF

Active

Amphenol ICC (FCI)

CONN FPC TOP 10POS 0.5MM R/A

Deep-Dive with AI

Documentsfci basics ffc fpc productpresentation Other Related Document Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV10R-4STE1HLF

Actuator Color	Brown
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Notched
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled, Halogen Free
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV10R Series

Part	Actuator Color	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	Actuator Material	Number of Positions	Voltage Rating	Current Rating (Amps)	Flat Flex Type	Termination	Locking Feature	Housing Color	Cable End Type	Mounting Type	Housing Material	Contact Material	FFC, FCB Thickness	Height Above Board	Height Above Board	Material Flammability Rating	Mating Cycles	Contact Finish	Pitch [x]	Pitch [x]	Features	FFC, FCB Thickness [z]
Amphenol ICC (FCI) SFV10R-2STBE1HLF	Black	105 ░C	-55 °C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze	0.3 mm	1.8 mm	0.071 in	UL94 V-0	20	Gold	0.5 mm	0.02 in
Amphenol ICC (FCI) SFV10R-2STAE1HLF	Black	105 ░C	-55 °C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze	0.33 mm	1.8 mm	0.071 in	UL94 V-0	20	Gold	0.5 mm	0.02 in
Amphenol ICC (FCI) SFV10R-3STBE1HLF	Beige	105 ░C	-55 °C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FPC	Solder	Slide Lock	Black	Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze	0.3 mm	1.8 mm	0.071 in	UL94 V-0	20	Gold	0.5 mm	0.02 in
Amphenol ICC (FCI) SFV10R-1STE5HLF				Contacts Bottom		10				Solder	Slide Lock			Surface Mount Right Angle									0.5 mm	0.02 in
Amphenol ICC (FCI) SFV10R-1STE1	Brown	105 ░C	-55 °C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Straight Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze		1.8 mm	0.071 in	UL94 V-0	20	Tin Alloy	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV10R-1STE9HLF	Black	105 ░C	-55 °C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Straight Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze		1.8 mm	0.071 in	UL94 V-0	20	Tin	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV10R-1STBE1HLF	Black	105 ░C	-55 °C	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze	0.3 mm	1.8 mm	0.071 in	UL94 V-0	20	Gold	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)
Amphenol ICC (FCI) SFV10R-2STE9HLF	Black	105 ░C	-55 °C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FFC FPC	Solder	Slide Lock	Black	Straight Tapered	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze		1.8 mm	0.071 in	UL94 V-0	20	Tin	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)	0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV10R-4STE1HLF	Brown	105 ░C	-55 °C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	10	50 V	0.5 A	FPC	Solder	Slide Lock	Black	Notched	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled Halogen Free	Phosphor Bronze		1.8 mm	0.071 in	UL94 V-0	20	Tin	0.5 mm	0.02 in		0.3 mm 0.33 mm
Amphenol ICC (FCI) SFV10R-4STE1	Black	105 ░C	-55 °C	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	10	50 V	0.5 A	FPC	Solder	Slide Lock	Black	Notched	Surface Mount Right Angle	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze	0.33 mm	1.8 mm	0.071 in	UL94 V-0	20	Tin Alloy	0.5 mm	0.02 in	Solder Retention Zero Insertion Force (ZIF)
