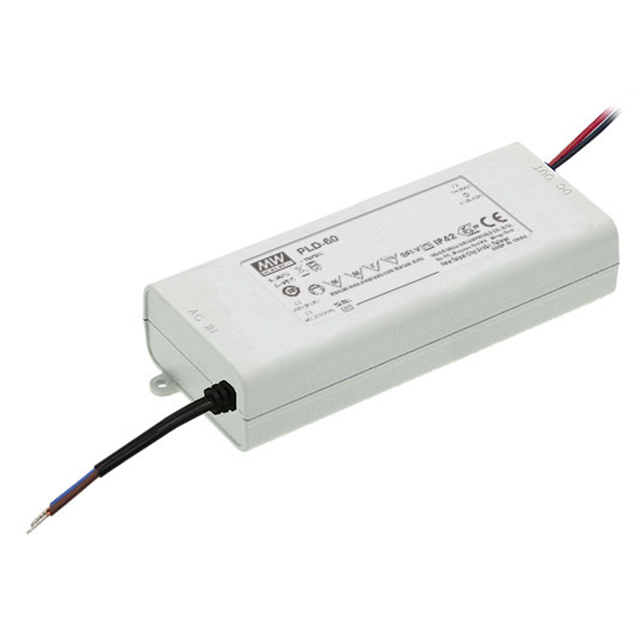

PLD-60-1400B

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 25-43V 1.4A

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC AC/DC 25-43V 1.4A

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Voltage - Input (Min) [Min]	Features	Approval Agency	Mounting Type	Ratings	Efficiency	Topology	Voltage - Isolation	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]	Number of Outputs	Power (Watts)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output [Max]	Voltage - Output [Min]
MEAN WELL USA Inc. PLD-60-700B	Wire Leads	180 VAC	OTP SCP	CB CE ENEC	Chassis Mount	IP42	87 %	AC DC Converter	3750 V	295 VAC	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	700 mA	1	60 W	Constant Current	-30 ░C	45 °C
MEAN WELL USA Inc. PLD-60-500B	Wire Leads	180 VAC	OTP SCP	CB CE ENEC	Chassis Mount	IP42	88 %	AC DC Converter	3750 V	295 VAC	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	500 mA	1	54 W	Constant Current	-30 ░C	45 °C	108 V	70 V
MEAN WELL USA Inc. PLD-60-1400B	Wire Leads	180 VAC	OTP SCP	CB CE ENEC	Chassis Mount	IP42	86 %	AC DC Converter	3750 V	295 VAC	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	1.4 A	1	60 W	Constant Current	-30 ░C	45 °C	43 V	25 V
MEAN WELL USA Inc. PLD-60-2000B	Wire Leads	180 VAC	OTP SCP	CB CE ENEC	Chassis Mount	IP42	86 %	AC DC Converter	3750 V	295 VAC	5.04 "	128 mm	2.36 "	1.24 "	60 mm	31.5 mm	2 A	1	60 W	Constant Current	-30 ░C	45 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.4A 25 ~ 43V Constant Current LED Driver AC DC Converter Topology 1 Output
