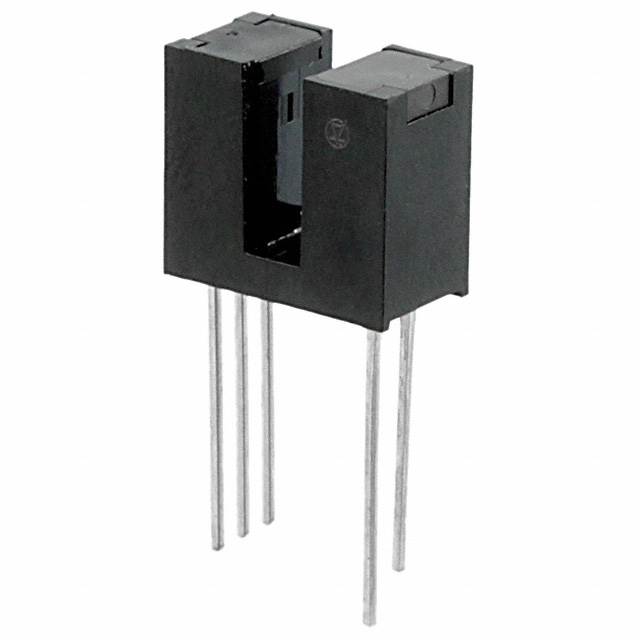

OPB473N11
ActiveTT Electronics/Optek Technology
SENSOR OPTICAL 3.18MM PCB MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB473N11
ActiveTT Electronics/Optek Technology
SENSOR OPTICAL 3.18MM PCB MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB473N11 |
|---|---|
| Current - Supply | 7.5 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | NPN - Open Collector, Inverted |
| Package / Case | PCB Mount |
| Response Time | 50 ns |
| Sensing Distance | 0.125 " |
| Sensing Distance | 3.18 mm |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 16 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 3.04 | |
Description
General part information
OPB473 Series
Optical Sensor Through-Beam 0.125" (3.18mm) PCB Mount
