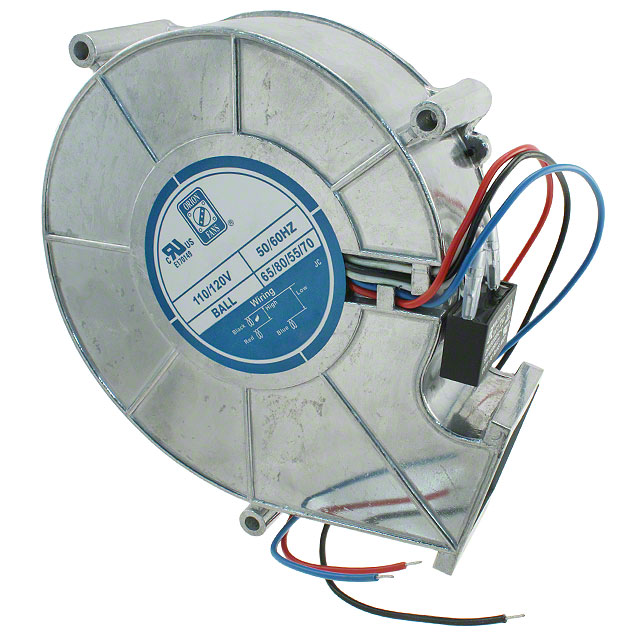

OAB908AN-11-1/2

Active

Orion Fans

FAN BLOWER 183X70MM 120VAC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OAB908AN-11-1/2

Active

Orion Fans

FAN BLOWER 183X70MM 120VAC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OAB908AN-11-1/2

Air Flow [Max]	2.8 m³/min
Air Flow [Max]	100 CFM
Air Flow [Min]	75 CFM
Air Flow [Min]	2.1 m³/min
Bearing Type	Ball
Fan Type	Blower
Features	Thermal Overload Protector (TOP), Dual Speed
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Noise [Max]	68 dB
Noise [Min]	55 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
RPM [Max]	3100 RPM
RPM [Min]	2400 RPM
Size / Dimension	Rectangular/Rounded
Size / Dimension [x]	183 mm
Size / Dimension [z]	189.8 mm
Static Pressure	348.7 Pa, 448.4 Pa
Static Pressure [Max]	1.8 in H2O
Static Pressure [Min]	1.4 in H2O
Termination	3 Wire Leads
Voltage - Rated	115 VAC
Voltage Range [Max]	125 VAC
Voltage Range [Min]	100 VAC
Width [y]	70 mm

OAB908AN Series

Part	Air Flow [Min]	Air Flow [Max]	Air Flow [Min]	Air Flow [Max]	Voltage - Rated	Material - Frame	Static Pressure	Static Pressure [Min]	Static Pressure [Max]	RPM [Min]	RPM [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Features	Termination	Lifetime @ Temp.	Size / Dimension [x]	Size / Dimension	Size / Dimension [z]	Bearing Type	Noise [Max]	Noise [Min]	Width [y]	Fan Type	Material - Blade	Static Pressure	RPM	Air Flow	Air Flow	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Noise	Power (Watts)
Orion Fans OAB908AN-22-1/2	75 CFM	2.8 m³/min	2.1 m³/min	100 CFM	230 VAC	Aluminum	348.7 Pa 448.4 Pa	1.4 in H2O	1.8 in H2O	2400 RPM	3100 RPM	-20 C	-20 °C	75 ░C	75 °C	Dual Speed Thermal Overload Protector (TOP)	3 Wire Leads	40000 Hrs	183 mm	Rectangular/Rounded	189.8 mm	Ball	68 dB	55 dB(A)	70 mm	Blower	Plastic
Orion Fans OAB908AN-22-3					230 VAC	Aluminum	274 Pa					-20 C	-20 °C	75 ░C	75 °C	Capacitor Thermal Overload Protector (TOP)	3 Wire Leads	40000 Hrs	183 mm	Rectangular/Rounded	189.8 mm	Ball			70 mm	Blower	Plastic	1.1 in H2O	1000 RPM	1.4 m³/min	1.4 mł/min 50 CFM	260 VAC	100 VAC	50 CFM	40 dB(A)	60 W
Orion Fans OAB908AN-11-3					115 VAC	Aluminum	274 Pa					-20 C	-20 °C	75 ░C	75 °C	Capacitor Thermal Overload Protector (TOP)	3 Wire Leads	40000 Hrs	183 mm	Rectangular/Rounded	189.8 mm	Ball			70 mm	Blower	Plastic	1.1 in H2O	1000 RPM	1.4 m³/min	50 CFM	130 VAC	60 VAC		40 dB(A)	60 W
Orion Fans OAB908AN-11-1/2	75 CFM	2.8 m³/min	2.1 m³/min	100 CFM	115 VAC	Aluminum	348.7 Pa 448.4 Pa	1.4 in H2O	1.8 in H2O	2400 RPM	3100 RPM	-20 C	-20 °C	75 ░C	75 °C	Dual Speed Thermal Overload Protector (TOP)	3 Wire Leads	40000 Hrs	183 mm	Rectangular/Rounded	189.8 mm	Ball	68 dB	55 dB(A)	70 mm	Blower	Plastic					125 VAC	100 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.25

Description

General part information

OAB908AN Series

Fan Blower 115VAC Rectangular/Rounded - 183mm L x 189.8mm H Ball 75.0 ~ 100.0 CFM (2.10 ~ 2.80m³/min) 3 Wire Leads

Documents

Technical documentation and resources

No documents available
