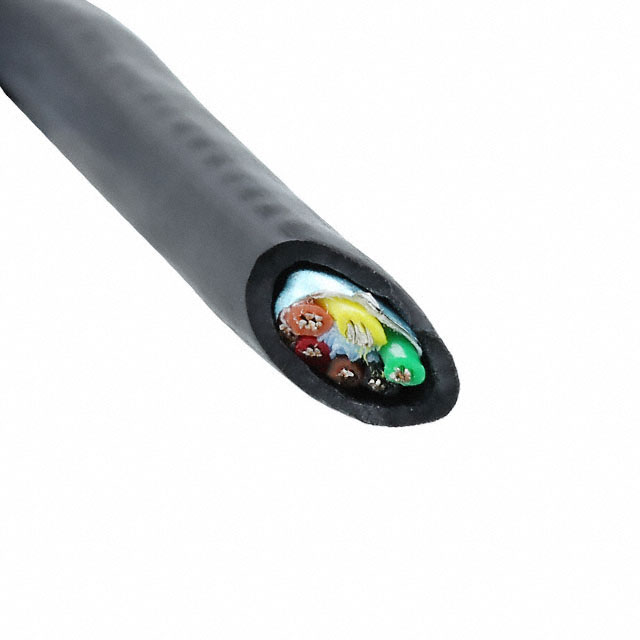

25096 BK005

Active

ALPHA WIRE

CABLE 6COND 24AWG BLK SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 6COND 24AWG BLK SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	25096 BK005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Rip Cord, Biological Compatibility, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.205 in
Jacket (Insulation) Diameter [diameter]	5.21 mm
Jacket (Insulation) Material	Polyurethane (PU)
Jacket Color	Black
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	6
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 20668, ISO 10993
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Wire Gauge	Ratings	Cable Type	Features	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Type	Voltage	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length	Shield Material	Length [x]	Length [x]
ALPHA WIRE 25096 SL199	32 AWG	7	6	Slate	24 AWG	ISO 10993 UL Style 20668	Multi-Conductor	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	-30 ░C	90 °C	100 %	Foil	300 V	Copper Tinned	0.205 in	5.21 mm	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	Aluminum
ALPHA WIRE 25096 BK005	32 AWG	7	6	Black	24 AWG	ISO 10993 UL Style 20668	Multi-Conductor	Biological Compatibility Drain Wire Rip Cord	Polyurethane (PU)	-30 ░C	90 °C	100 %	Foil	300 V	Copper Tinned	0.205 in	5.21 mm	Poly-Vinyl Chloride (PVC)			Aluminum	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Conductor Multi-Conductor Cable Black 24 AWG Foil 100.0' (30.5m)
