155-17801

Active

HELLERMANNTYTON

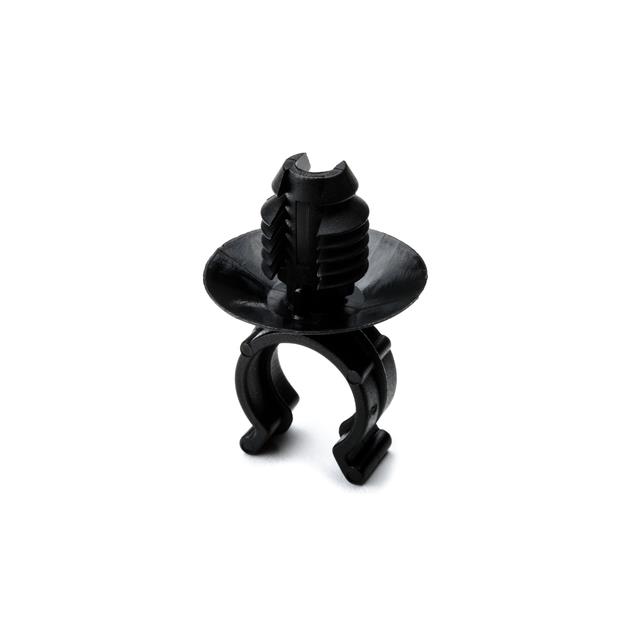

CONVOLUTED TUBING CLIP, .40" MAX

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CONVOLUTED TUBING CLIP, .40" MAX

Technical Specifications

Parameters and characteristics for this part

Specification	155-17801

Color	Black
Features	Impact Resistant, Heat Stabilized
Height [z]	22.7 mm
Height [z]	0.894 "
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB
Mounting Type	Cupped, Fir Tree
Opening Size [custom]	0.4 in
Opening Size [custom]	10.16 mm
Panel Hole Size [Max]	8.89 mm
Panel Hole Size [Max]	0.35 in
Panel Hole Size [Min]	0.34 in
Panel Hole Size [Min]	8.64 mm
Panel Thickness [Max]	3.05 mm
Panel Thickness [Max]	0.12 "
Panel Thickness [Min]	0.02 "
Panel Thickness [Min]	0.51 mm
Type Attributes	Open
Width [x]	8 mm
Width [x]	0.315 in

Part	Material	Panel Hole Size [Max]	Panel Hole Size [Max]	Panel Hole Size [Min]	Panel Hole Size [Min]	Mounting Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Opening Size [custom]	Opening Size [custom]	Width [x]	Width [x]	Height [z]	Height [z]	Material Flammability Rating	Color	Type Attributes	Features
HELLERMANNTYTON 155-17801	Polyamide (PA66) Nylon 6/6	8.89 mm	0.35 in	0.34 in	8.64 mm	Cupped Fir Tree	3.05 mm	0.02 "	0.51 mm	0.12 "	0.4 in	10.16 mm	8 mm	0.315 in	22.7 mm	0.894 "	UL94 HB	Black	Open	Heat Stabilized Impact Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, U-Type Black Fir Tree, Cupped 0.400" (10.16mm)
