TW-26-05-G-Q-355-100

Active

Samtec Inc.

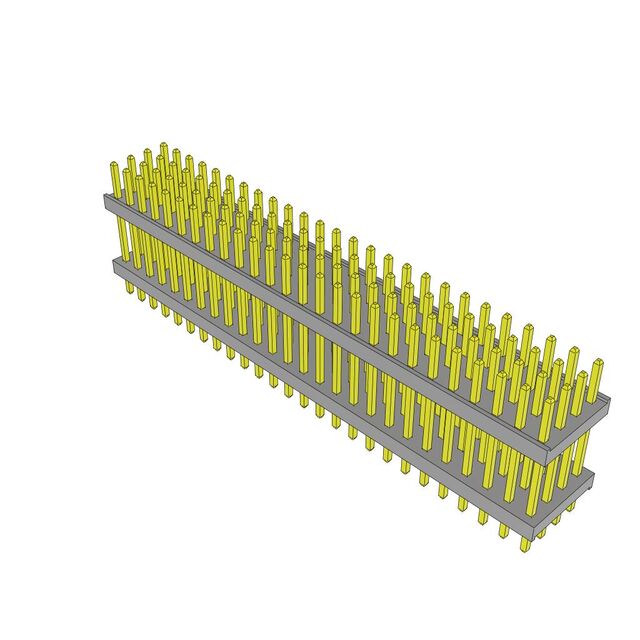

CONN BRD STACK 2.00 104POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2.00 104POS

Technical Specifications

Parameters and characteristics for this part

Specification	TW-26-05-G-Q-355-100

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.51 Ám
Contact Finish Thickness - Post (Mating)	20 Áin
Length - Overall Pin	15.088 mm
Length - Overall Pin	0.594 in
Length - Post (Mating) [x]	0.139 in
Length - Post (Mating) [x]	3.531 mm
Length - Stack Height [x]	9.017 mm
Length - Stack Height [x]	0.355 in
Length - Tail [x]	0.1 "
Length - Tail [x]	2.54 mm
Mounting Type	Through Hole
Number of Positions	104
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Termination	Solder

Part	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Length - Tail [x]	Length - Tail [x]	Pitch [x]	Pitch [x]	Number of Positions	Color
Samtec Inc. TW-26-05-G-Q-355-100	0.139 in	3.531 mm	Through Hole	0.51 Ám	20 Áin	Gold	15.088 mm	0.594 in	Solder	9.017 mm	0.355 in	2 mm	0.079 in	0.1 "	2.54 mm	0.079 in	2 mm	104	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.43

General part information

104 Position Header Spacer Connector 0.079" (2.00mm) Gold Through Hole
