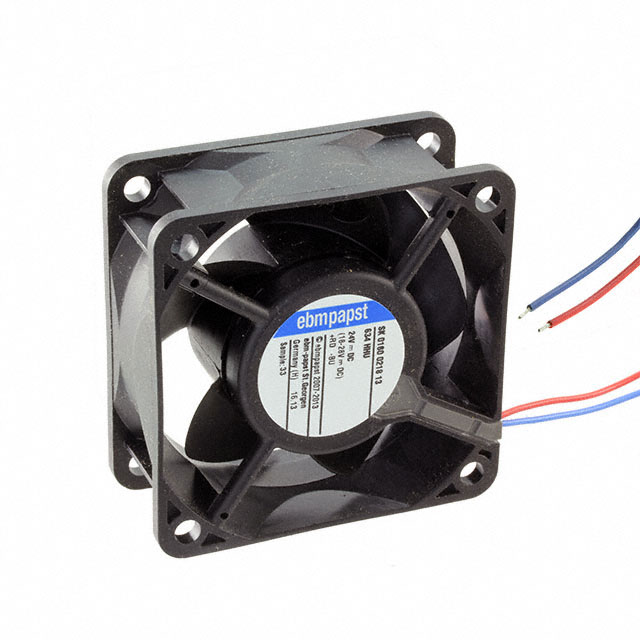

634HHU

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 18V TO 28V 34.1CFM 44DB 60 X 60 X 25.4MM

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 24V 18V TO 28V 34.1CFM 44DB 60 X 60 X 25.4MM

Technical Specifications

Parameters and characteristics for this part

Specification	634HHU

Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	44 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.2 W
RPM	8500 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Weight	0.154 lb
Weight	69.85 g
Width [y]	25.4 mm

Part	Power (Watts)	Weight	Weight	Width [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Ingress Protection	Approval Agency	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	RPM	Fan Type	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Material - Frame	Termination
ebm-papst Inc. 634HHU	3.2 W	0.154 lb	69.85 g	25.4 mm	60 mm	60 mm	24 VDC	IP68 - Dust Tight Waterproof	UL	Fiberglass Reinforced Nylon Polyamide (PA)	18 VDC	28 VDC	8500 RPM	Tubeaxial	Ball	-20 °C	70 °C	-20 C	70 °C	44 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	2 Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 34.1 CFM (0.955mł/min) 2 Wire Leads
