09628102301
ActiveHARTING Technology Group

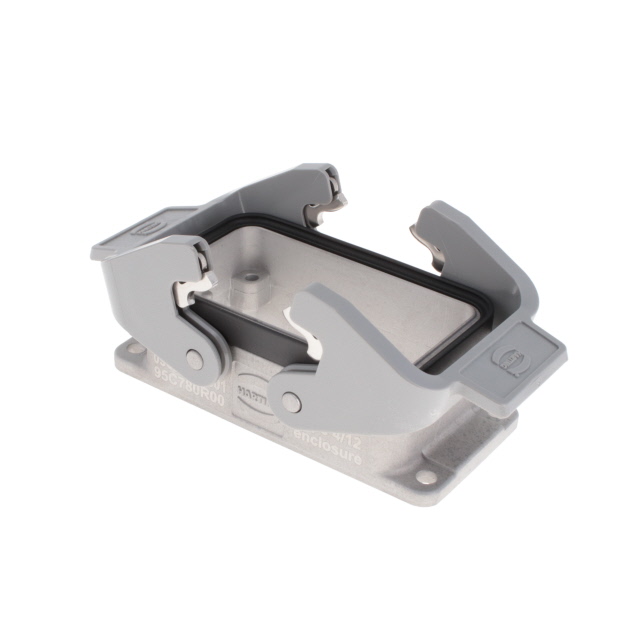

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM DIE-CAST, 2 LEVER, 10B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 09628102301 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP66 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Size / Dimension [x] | 3.661 inches |
| Size / Dimension [x] | 93 mm |
| Size / Dimension [y] | 1.732 in |
| Size / Dimension [y] | 44 mm |
| Size / Dimension [z] | 29.9 mm |
| Size / Dimension [z] | 1.177 in |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
09628102 Series
Base - Panel Mount Connector Bottom Entry 10B IP66 - Dust Tight, Water Resistant
