1714878

Obsolete

Phoenix Contact

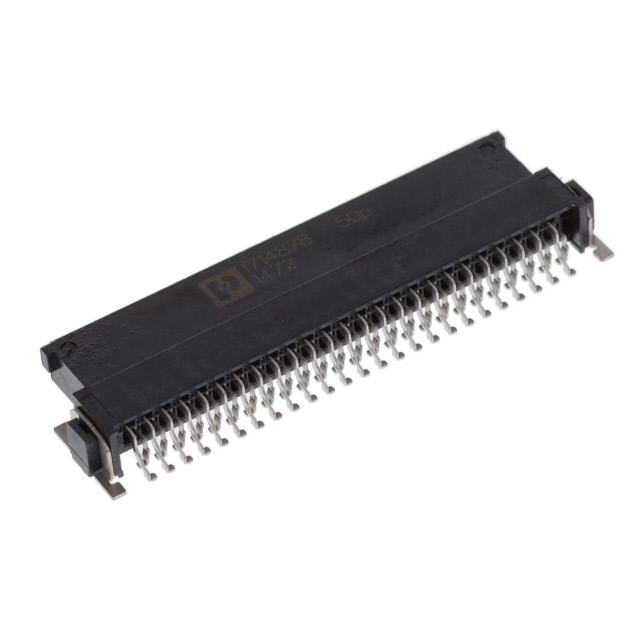

BTB CONNECTOR, RCPT, 50POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Phoenix Contact

BTB CONNECTOR, RCPT, 50POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	1714878

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	1.4 A
Fastening Type	Push-Pull
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	3.81 mm
Insulation Height	0.15 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	500 V

Board to Board & Mezzanine Connectors FP 1,27/ 12-FV 6,25

Part	Style	Number of Rows	Termination	Number of Positions	Features	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Material	Contact Shape	Insulation Color	Contact Finish - Mating	Fastening Type	Connector Type	Contact Type	Current Rating (Amps)	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Mated Stacking Heights	Insulation Material	Voltage Rating
Phoenix Contact 1714891	Board to Board Cable	2	Solder	12	Board Guide Solder Retention	UL94 V-0	-55 °C	125 °C	Surface Mount	Tin	0.05 in	1.27 mm	Copper Alloy	Square	Black	Gold	Push-Pull	Receptacle	Female Socket	1.4 A	0.246 in	6.25 mm	0.05 in	1.27 mm	All	8 mm 9.5 mm	Liquid Crystal Polymer (LCP)	500 V
Phoenix Contact 1714878	Board to Board Cable	2	Solder	50	Board Guide Solder Retention	UL94 V-0	-55 °C	125 °C	Surface Mount Right Angle	Tin	0.05 in	1.27 mm	Copper Alloy	Square	Black	Gold	Push-Pull	Receptacle	Female Socket	1.4 A	0.15 in	3.81 mm	0.05 in	1.27 mm	All		Liquid Crystal Polymer (LCP)	500 V
