M22-5320305

Active

Harwin Inc.

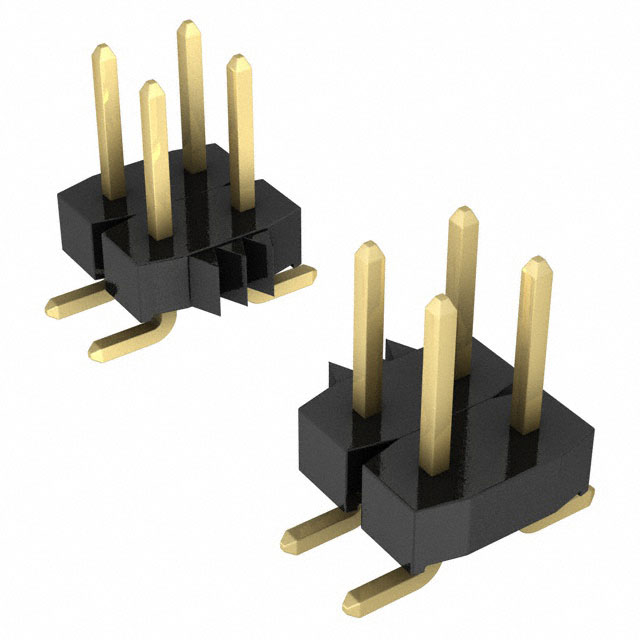

BOARD-TO-BOARD CONNECTOR, M22 SERIES, SURFACE MOUNT, HEADER, 6, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M22 Series Spec Sheet +5

M22-5320305

Active

Harwin Inc.

BOARD-TO-BOARD CONNECTOR, M22 SERIES, SURFACE MOUNT, HEADER, 6, 2 MM, GOLD PLATED CONTACTS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M22 Series Spec Sheet +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-5320305

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights [z]	4.6 mm, 6.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-532 Series

Part	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Shape	Insulation Material	Contact Type	Fastening Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Height	Insulation Height	Number of Rows	Number of Positions	Shrouding	Mated Stacking Heights [z]	Material Flammability Rating	Termination	Number of Positions Loaded	Connector Type	Contact Finish - Mating	Contact Finish - Post
Harwin Inc. M22-5320305	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	6	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320546R	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	10	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header		Tin
Harwin Inc. M22-5320505	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	10	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320605	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	12	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320246	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	4	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header		Tin
Harwin Inc. M22-5320505R	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	10	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5322205	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	44	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320205	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	4	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320605R	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	12	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold
Harwin Inc. M22-5320405	0.079 in	2 mm	0.138 in	3.5 mm	1 A	-40 °C	105 ░C	Black	Square	Nylon 6T Polyamide (PA6T)	Male Pin	Push-Pull	Phosphor Bronze	0.079 in	2 mm	Surface Mount	1.5 mm	0.059 "	2	8	Unshrouded	4.6 mm 6.8 mm	UL94 V-0	Solder	All	Cuttable Header	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.79
		10	$ 0.67
		400	$ 0.55
		800	$ 0.48
		1200	$ 0.44
		5200	$ 0.38
		10000	$ 0.36

Description

General part information

M22-532 Series

Connector Header Surface Mount 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M20-003

M22-5320305

Deep-Dive with AI

M22-5320305

Deep-Dive with AI

Technical Specifications

M22-532 Series

Pricing

Description

M22-532 Series

Documents

M20-003

M22 Series Spec Sheet

Datasheet

Product Change Notice EN

Drawing EN

3D Product Image EN

Manufacturer Catalogue EN

M22-532 Series
